Coupe

1. Remove the plug (2) from the bolt/screw (3).
2. Remove the bolt/screw (3) that attaches the plate to the rocker panel.
3. Remove the attaching plate.
4. Pull the webbing and the plate out of the shoulder belt guide.
5. Lower the rear portion of the headlining finishing trim panel. Refer to Roof in Body and Accessories.

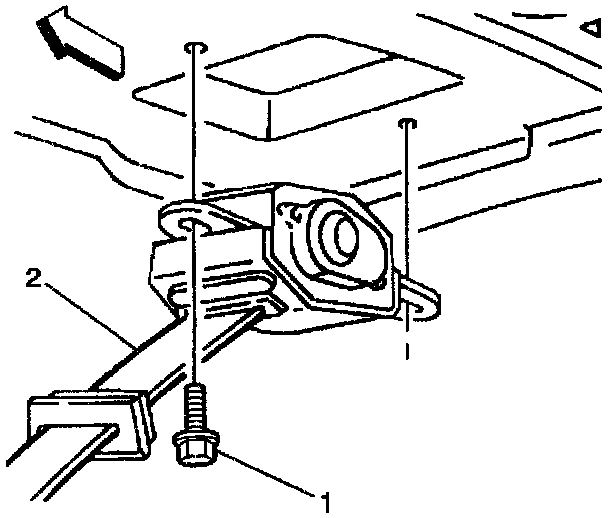

6. Remove the bolts/screws (1) that attach the bolt (2) to the rear roof panel.
7. Remove the belt (1) from the rear roof panel.
