Convertible

1. Remove the front quarter trim finishing panel. Refer to Body Rear End in Body and Accessories.

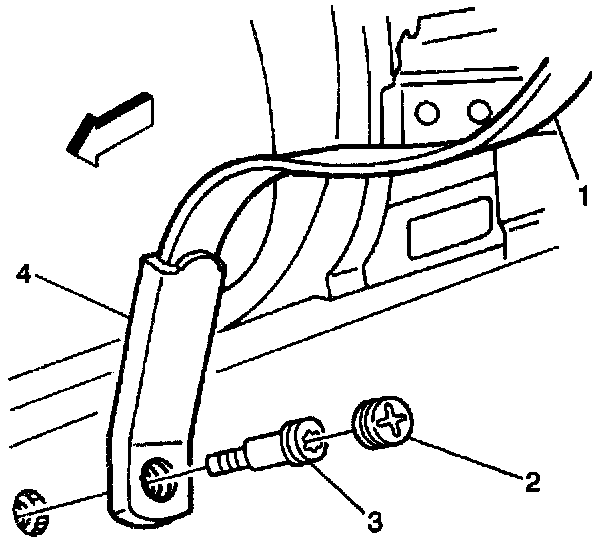

2. Remove the plug (2) from the bolt/screw (3).
3. Remove the bolt/screw (3) that attaches the plate to the rocker panel.

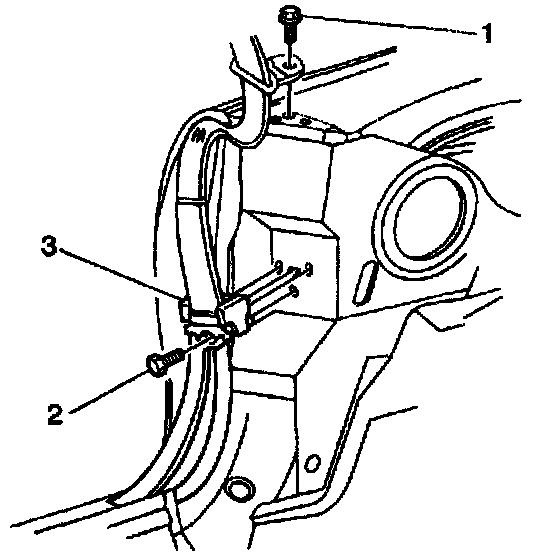

4. Remove the bolt/screw (1) from the shoulder belt guide.
5. Remove the retractor-side belt (3).
6. Remove the bolt/screw (2) from the retractor-side shoulder belt (3).
