Convertible

1. Remove the front quarter trim finishing panel. Refer to Body Rear End in Body and Accessories.

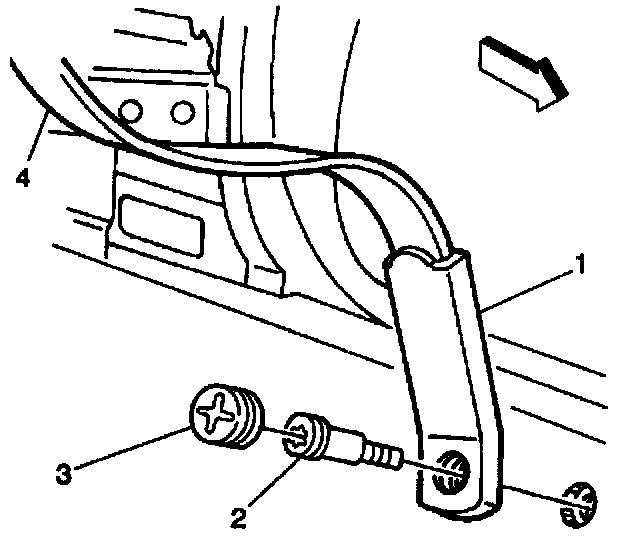

2. Remove the plug (3) from the bolt/screw (2).
3. Remove the bolt/screw (2) that attaches the plate to the rocker panel.






4. Remove the shoulder belt guide bolt/screw (3).
5. Remove the retractor-side belt (1).
6. Remove the shoulder belt retractor-side bolt/screw (2).
