Installation Procedure

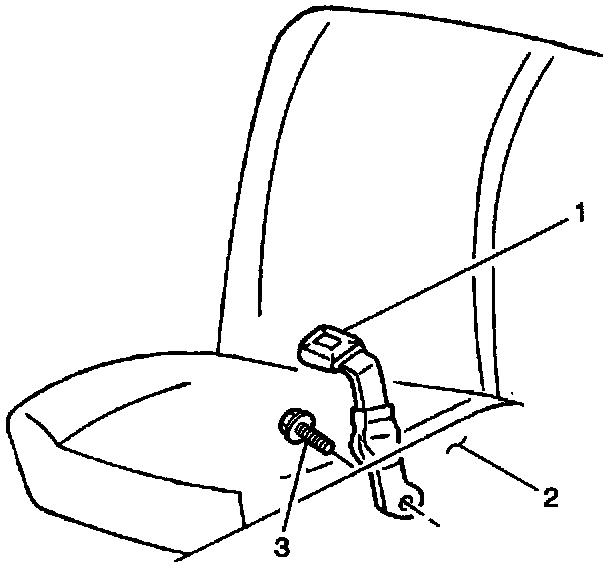

1. Install the belt (1).
NOTICE: Refer to Fastener Notice.
2. Install the bolt/screw (3).
Tighten
Tighten the bolt/screw (3) to 42 N.m (31 lb. ft).
3. Install the rear seat cushion. Refer to Seats in Body and Accessories.
1. Install the belt (1).
NOTICE: Refer to Fastener Notice.
2. Install the bolt/screw (3).
Tighten
Tighten the bolt/screw (3) to 42 N.m (31 lb. ft).
3. Install the rear seat cushion. Refer to Seats in Body and Accessories.
