Installation Procedure

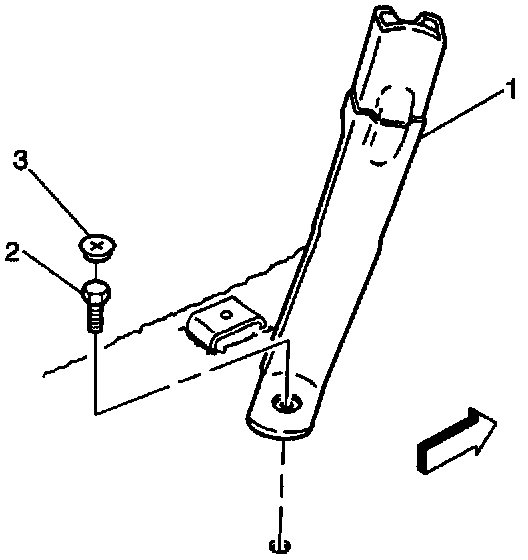

1. Install the belt (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt/screw (2) that attaches the belt (1) to the floor pan.
Tighten
Tighten the bolt/screw (2) to 42 N.m (31 lb. ft).
3. Install the plug (3) to the bolt/screw (2).
4. Install the front seat. Refer to Seats in Body and Accessories.
