Removal Procedure

CAUTION: The child seat tether anchor is intended for use only on the left or right outboard second row seats. Installation at any other seating position could result in system failure, leading to injury in the event of a collision.

CAUTION: The seat belt assembly and/or bracket assembly must be replaced as a unit only. Do not substitute pads for any reason, or personal injury could result.

Important: Replace the anchor bracket if the anchor bracket is damaged.

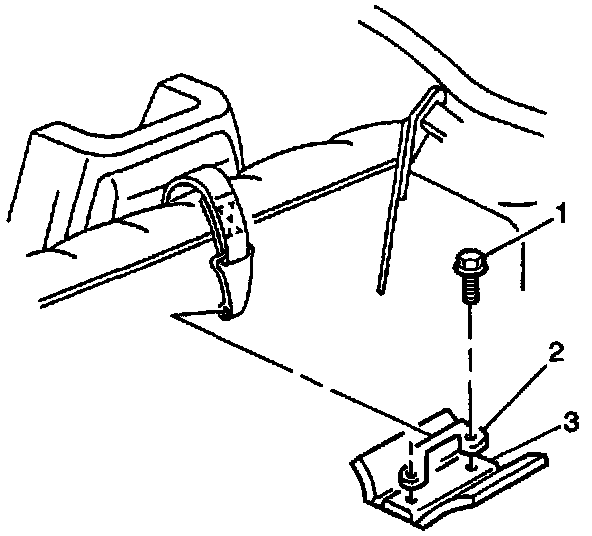

Description:

1. Remove the bolts/screws (1).
2. Remove the anchor bracket (3).
