Installation Procedure

Description:

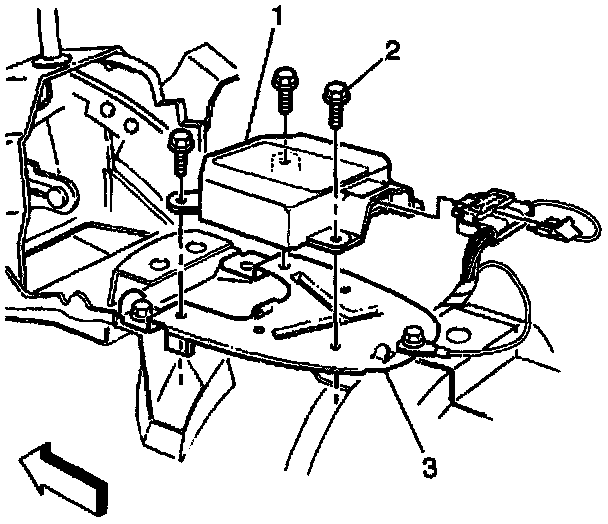

1. Install the SDM (1) to the bracket (3).

NOTICE: Refer to Fastener Notice in Vehicle Damage Warnings.

2. Install the SDM mounting fasteners (2).

Tighten
Tighten fasteners to 8 N.m (71 lb. in).

Description:

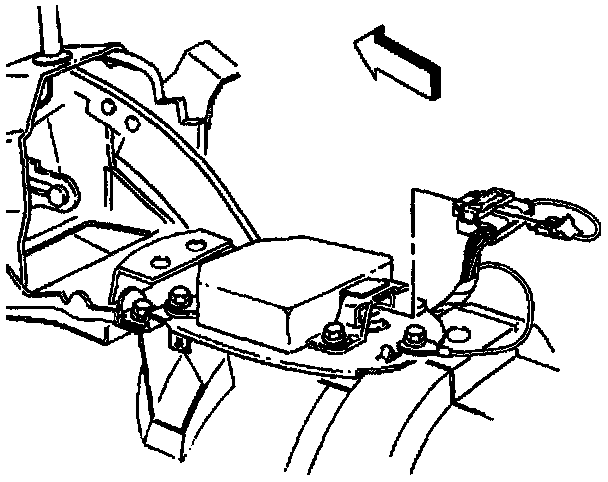

3. Install the SDM harness connector to the SDM.

Description:

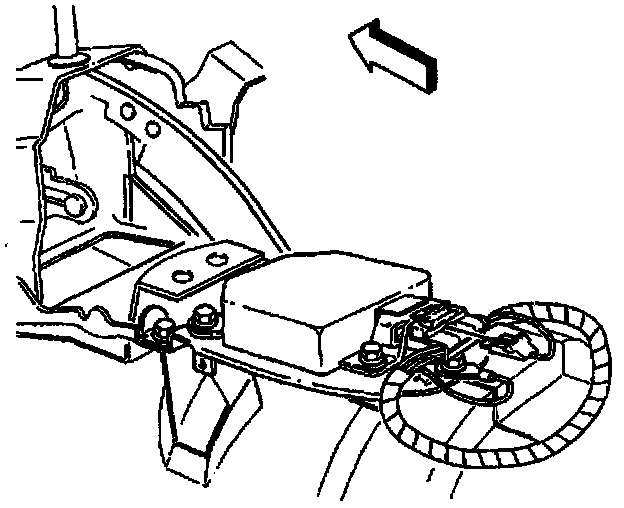

4. Install the Connector Position Assurance (CPA) to the SDM harness connector.
5. Install the front floor console.
6. Enable the SIR system. Refer to Enabling the SIR System.
