Knee Bolster Replacement

REMOVAL PROCEDURE

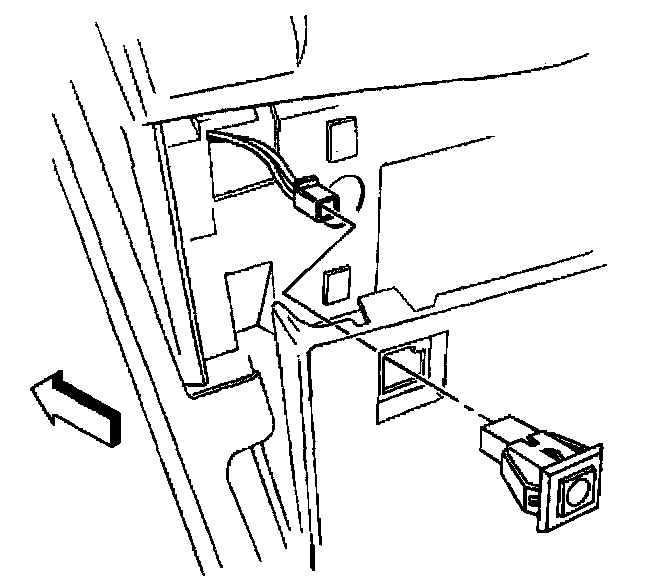

1. Remove the rear compartment lid release switch, if equipped.

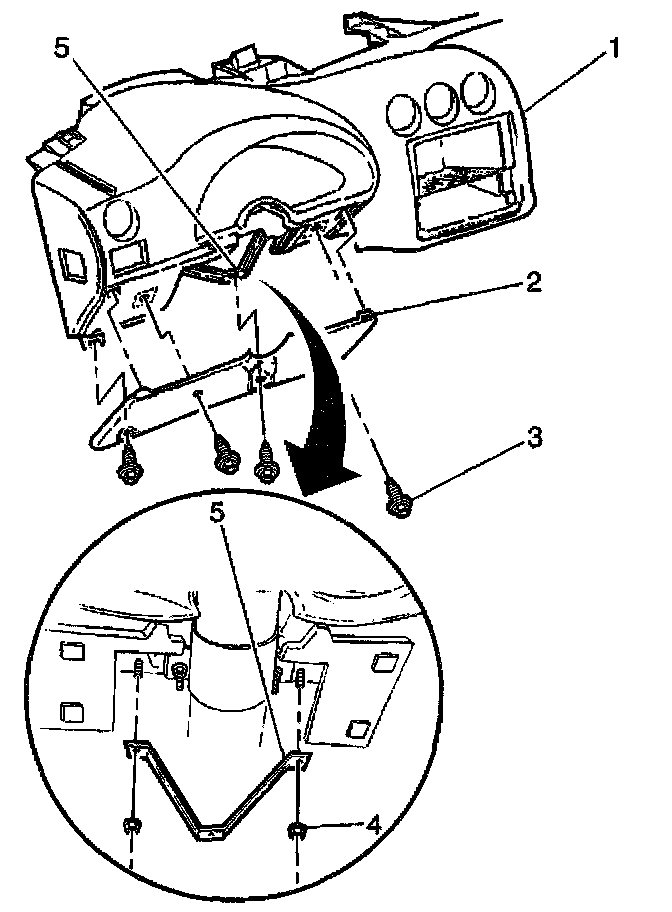

2. Remove the I/P knee bolster bolts (3).
3. Remove the I/P driver knee bolster (2).

INSTALLATION PROCEDURE




1. Install the I/P driver knee bolster (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the I/P knee bolster bolts (3).

Tighten
Tighten the I/P knee bolster bolts (3) to 1.9 N.m (17 lb in).




3. Install the rear compartment lid release switch if equipped.
