Installation

Description:

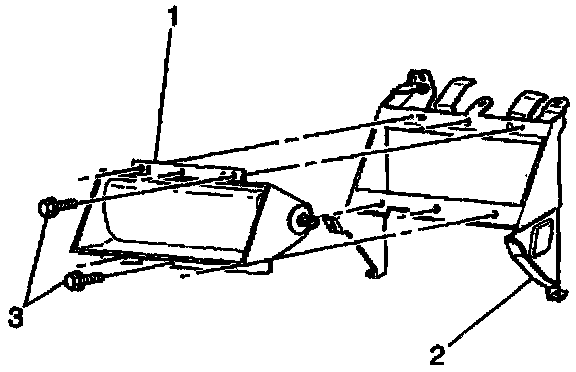

1. Install the inflatable restraint IP module (1) to the bracket (2).

NOTICE: Refer to Fastener Notice in Vehicle Damage Warnings.

2. Install the inflatable restraint IP module mounting fasteners (3).
Tighten
Tighten fasteners to 3.2 N.m (28 lb. in).

Description:

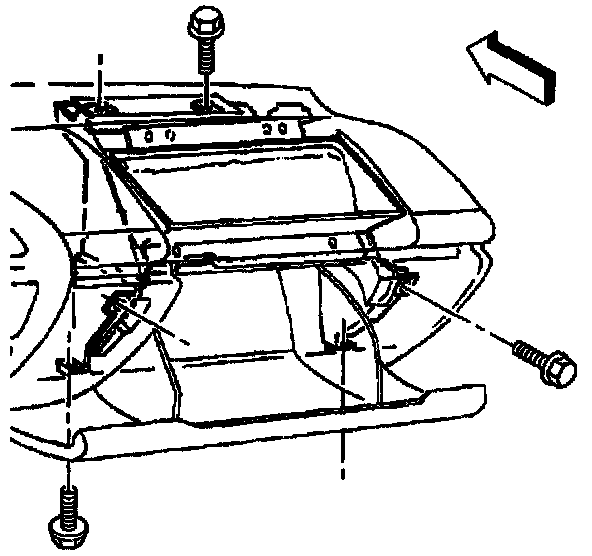

3. Install the inflatable restraint IP module bracket assembly to the IP carrier.
4. Install the inflatable restraint IP module bracket mounting fasteners (upper).
Tighten
Tighten fasteners to 6 N.m (53 lb. in).
5. Install the inflatable restraint IP module bracket mounting fasteners (lower).
Tighten
Tighten fasteners to 2.8 N.m (25 lb. in).

Description:

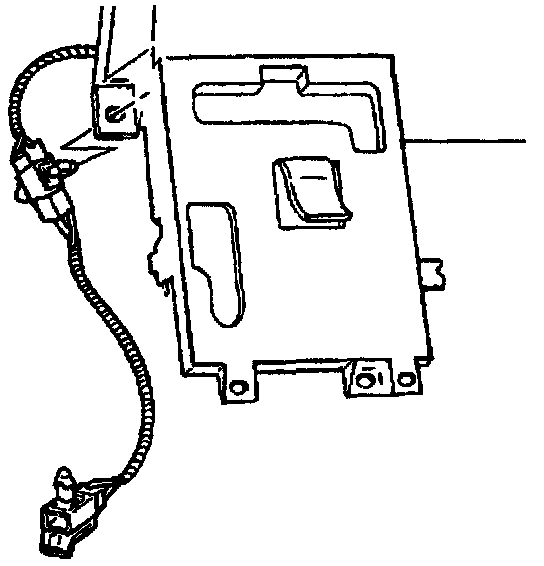

6. Connect the inflatable restraint IP module yellow 2-way pigtail connector to the SIR wiring harness jumper.
7. Install the instrument panel carrier.
8. Enable the SIR system.
