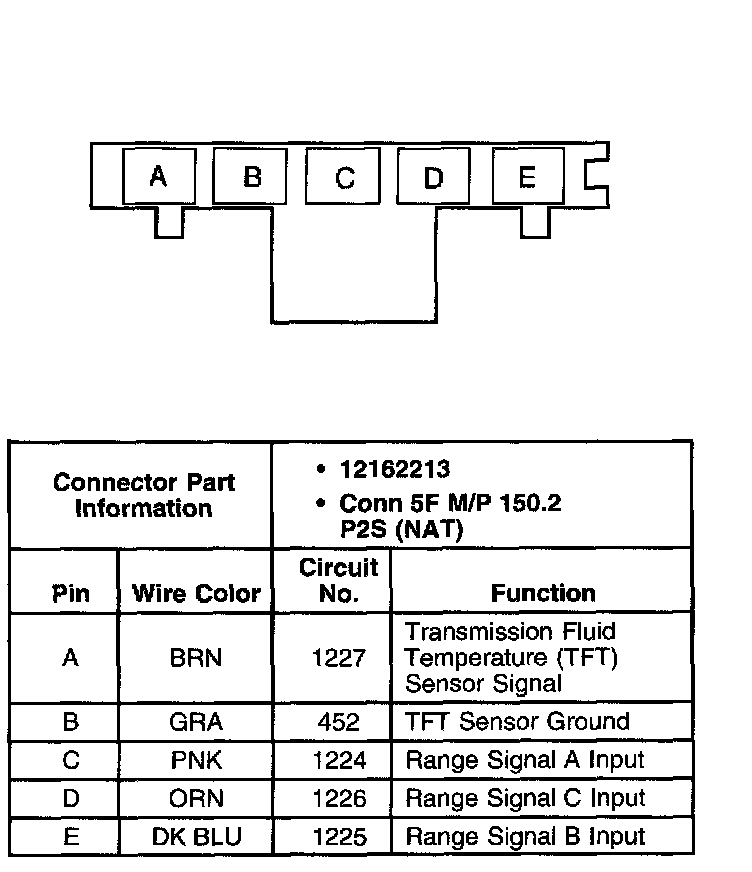

TFP Manual Valve Position Switch Connector - Harness Side
TFP Manual Valve Position Switch Connector - Harness Side
