Fuel Rail: Description and Operation

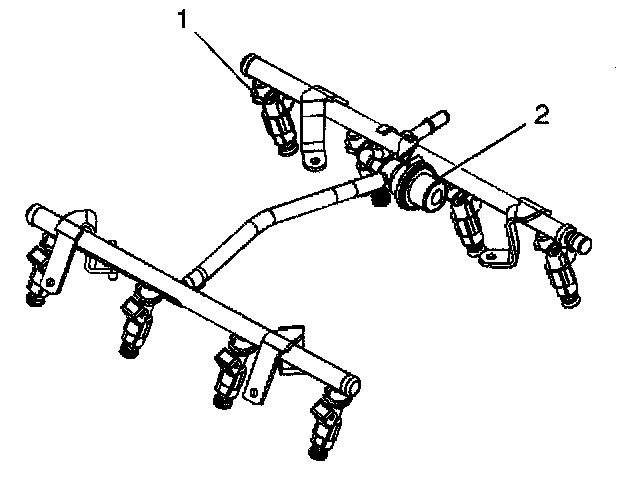

The fuel rail assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:

^ It positions the injectors (1) in the intake manifold.
^ It distributes fuel evenly to the injectors.
^ It integrates the fuel pulse dampener (2) into the fuel metering system.
