Fuel Pump Relay: Locations

Underhood Electrical Center 2:

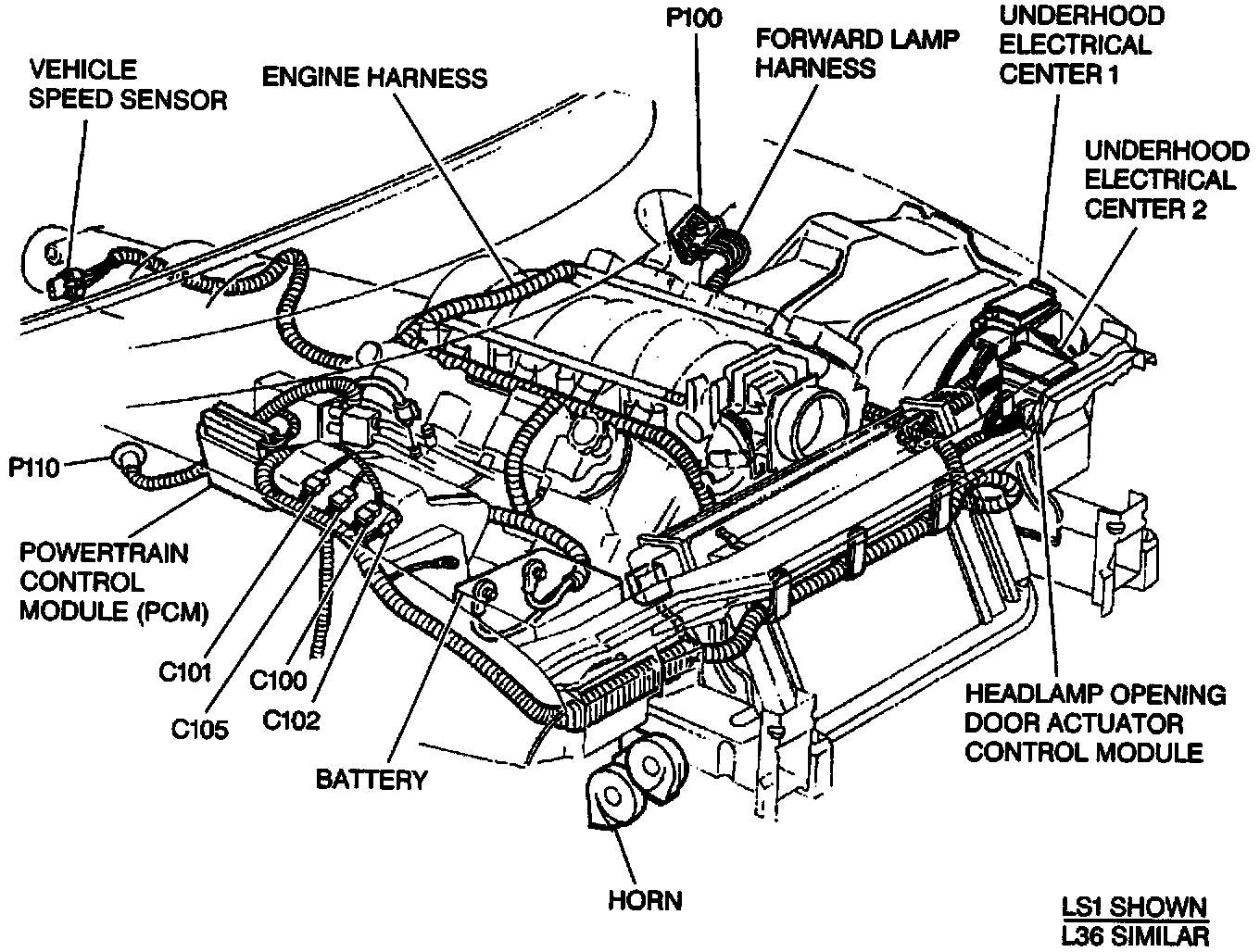

Engine Compartment - LS1 Is Shown, L36 Is Similar:
