Fuel Injector: Application and ID






When ordering new fuel injectors, be sure to order the correct injector for the application being serviced.

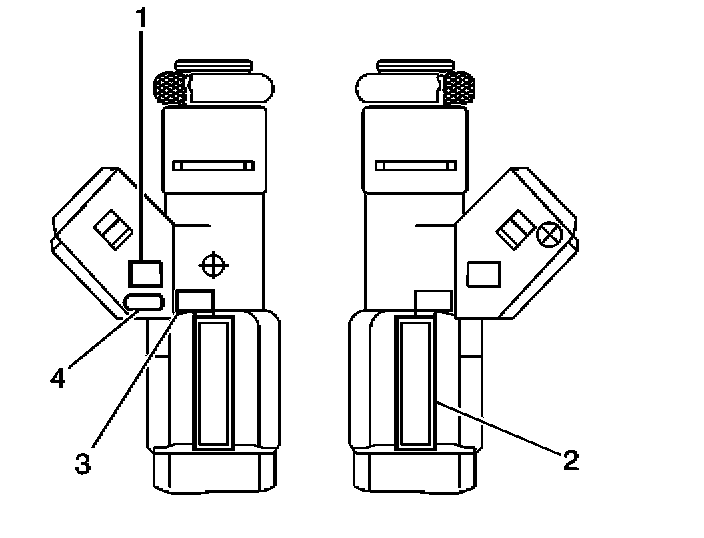

The fuel injector assembly is stamped with a part number identification (2), a manufacturing date (3), a week code (1), and a production plant number (4).
