Evaporative System Service Port: Description and Operation

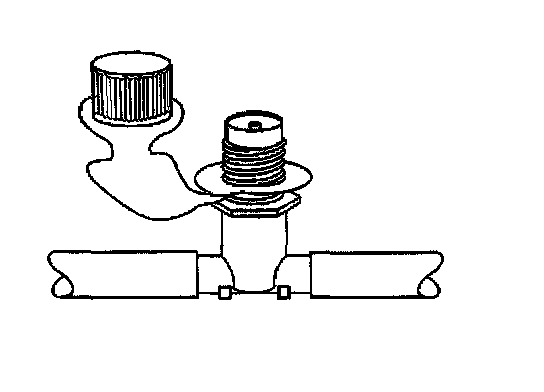

The enhanced [1][2]EVAP service port is located in the evaporative purge hose in the engine compartment near the purge solenoid. The service port is identified by a green colored cap. The port contains a schrader valve and fittings to allow the connection of the J 41413 EVAP Pressure/Purge Diagnostic Station.
