Evaporative Emission Control Canister: Service and Repair

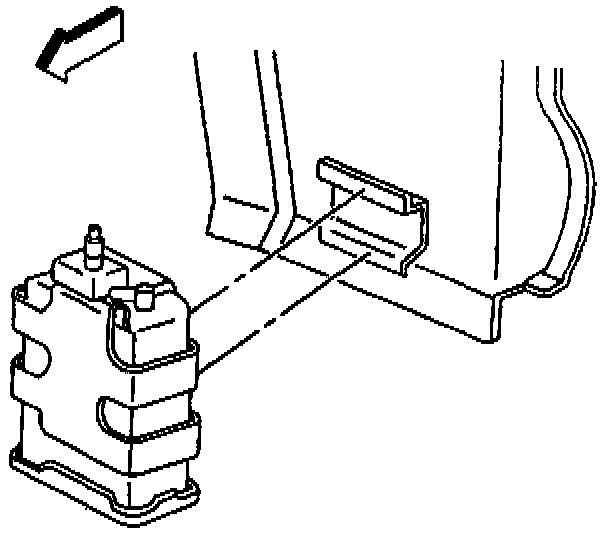

Evap Canister Location:

Evap Canister:

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the left rear tire.
3. Remove the left rear inner wheel well shield.
4. Disconnect the hoses from the canister.
5. Remove the canister from the canister bracket.
6. Remove the canister from the vehicle.

INSTALLATION PROCEDURE
1. Install the new canister to the canister bracket.
2. Connect the hoses to the canister.
3. Install inner wheel well shield.
4. Install wheel and tire assembly.
5. Lower the vehicle.
