Home
>>
Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
TCS Retard Signal, VSS Output & VSS Signal
TCS Retard Signal, VSS Output & VSS Signal

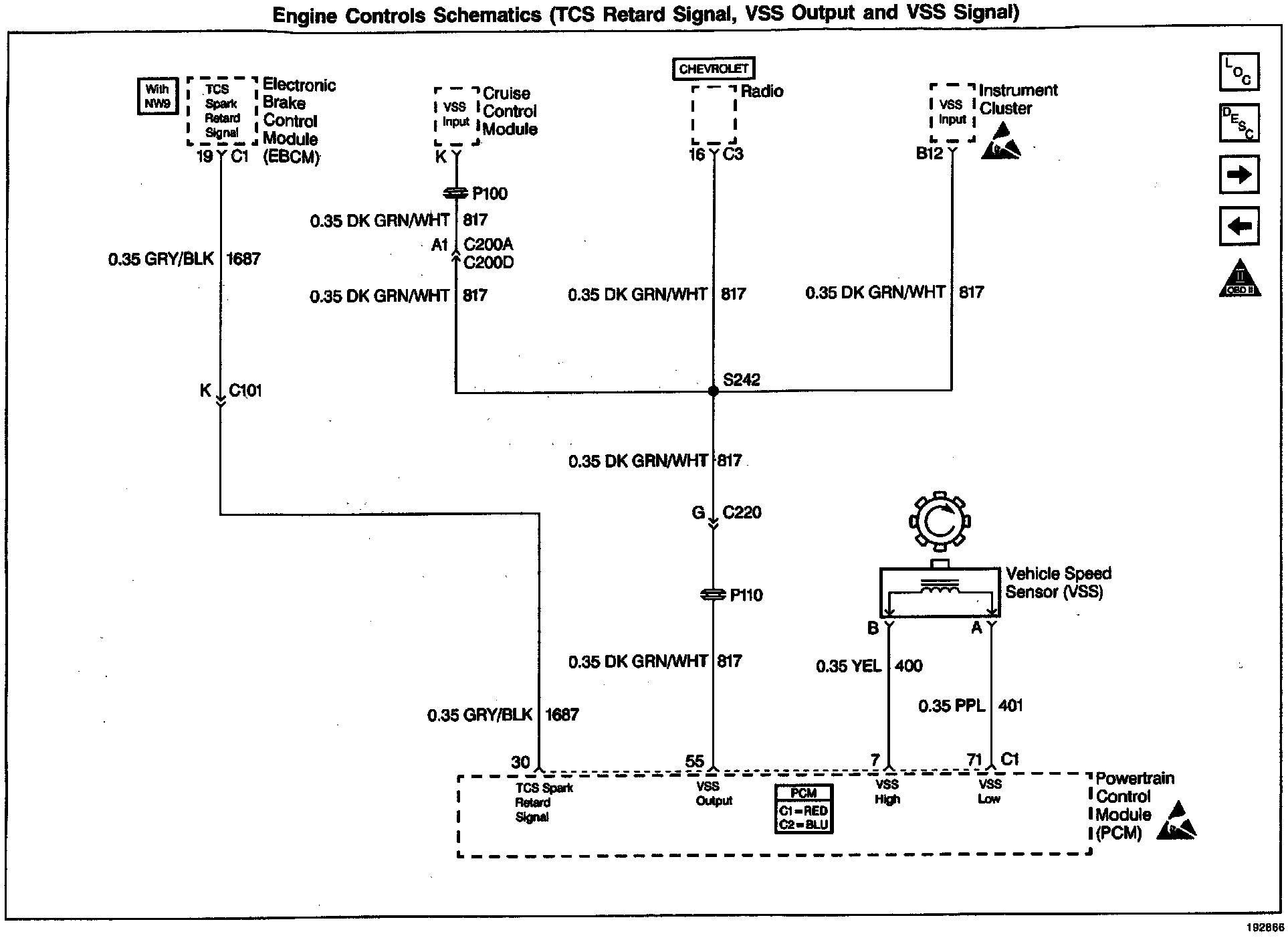

Wiring Diagram:
