Automatic Transmission/Transaxle Controls

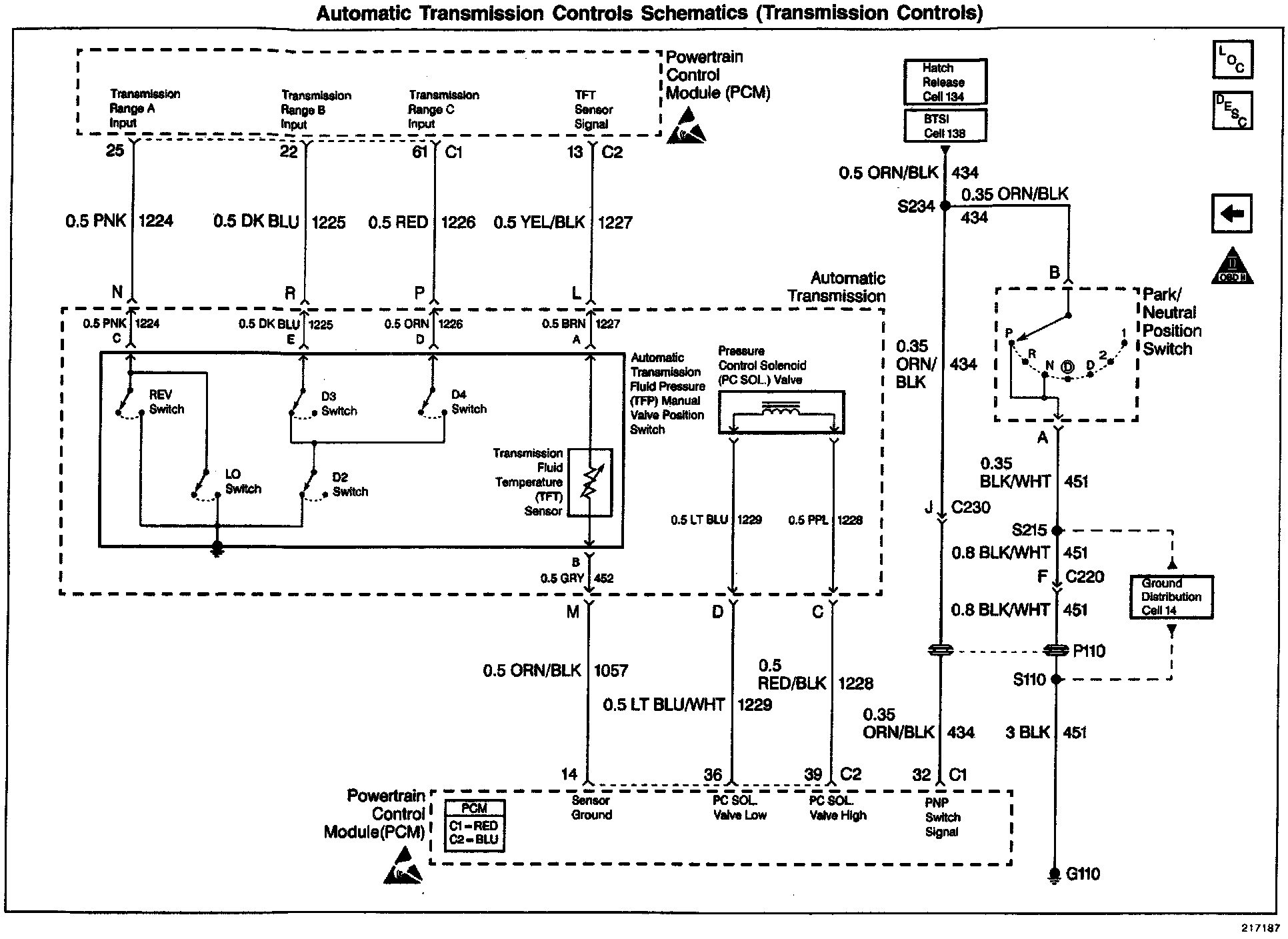

Wiring Diagram:

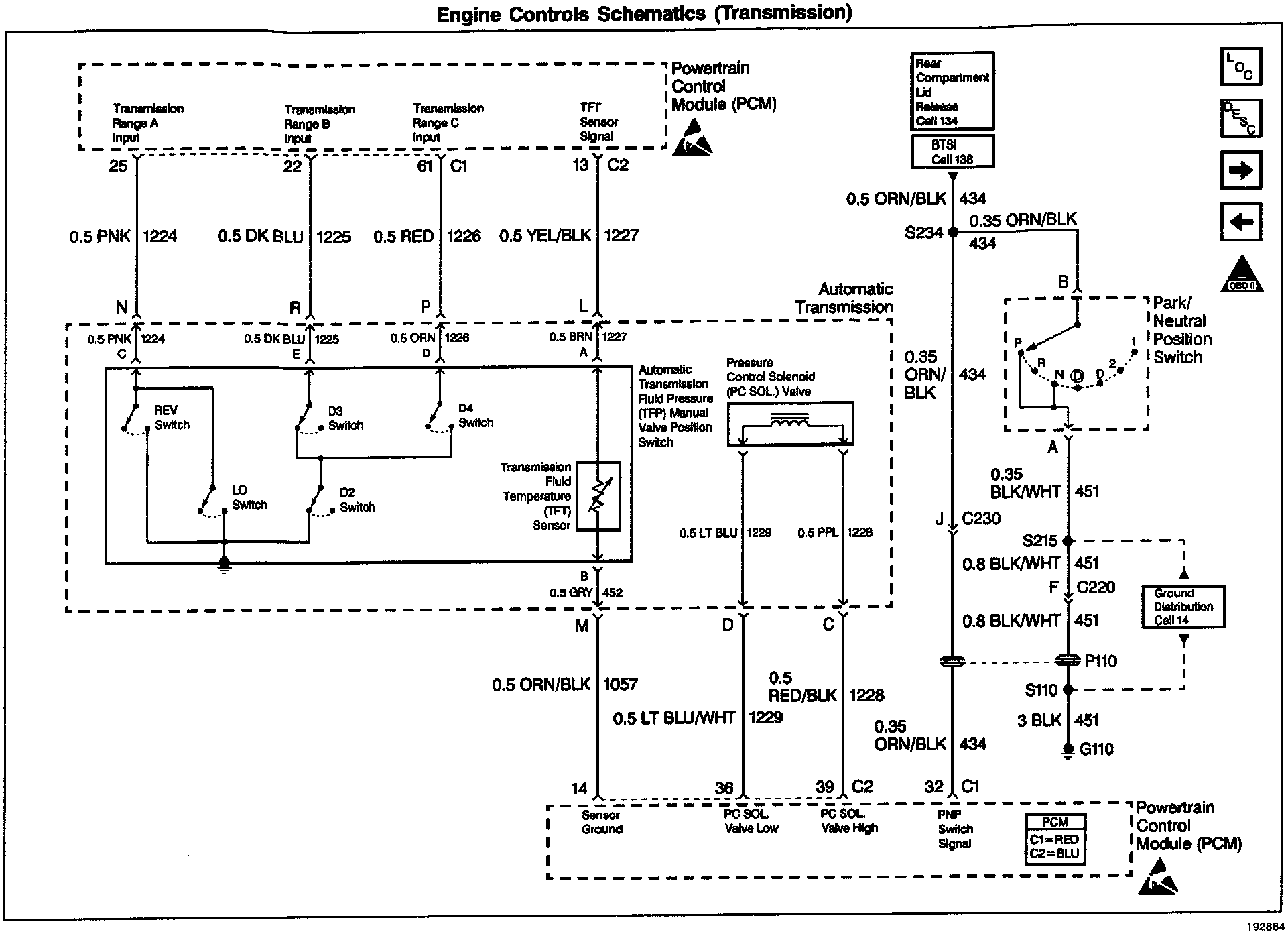

Wiring Diagram:

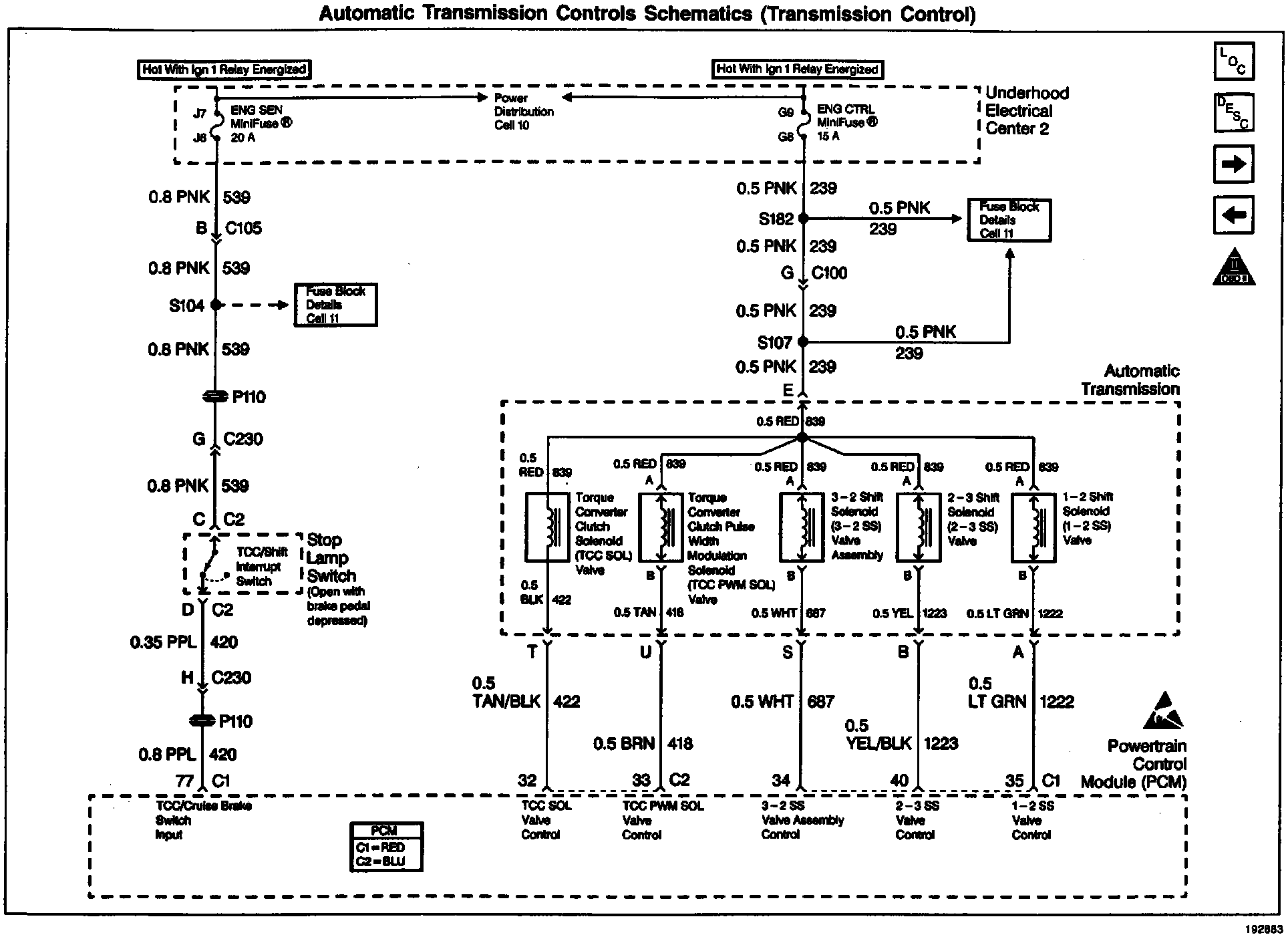

Wiring Diagram:

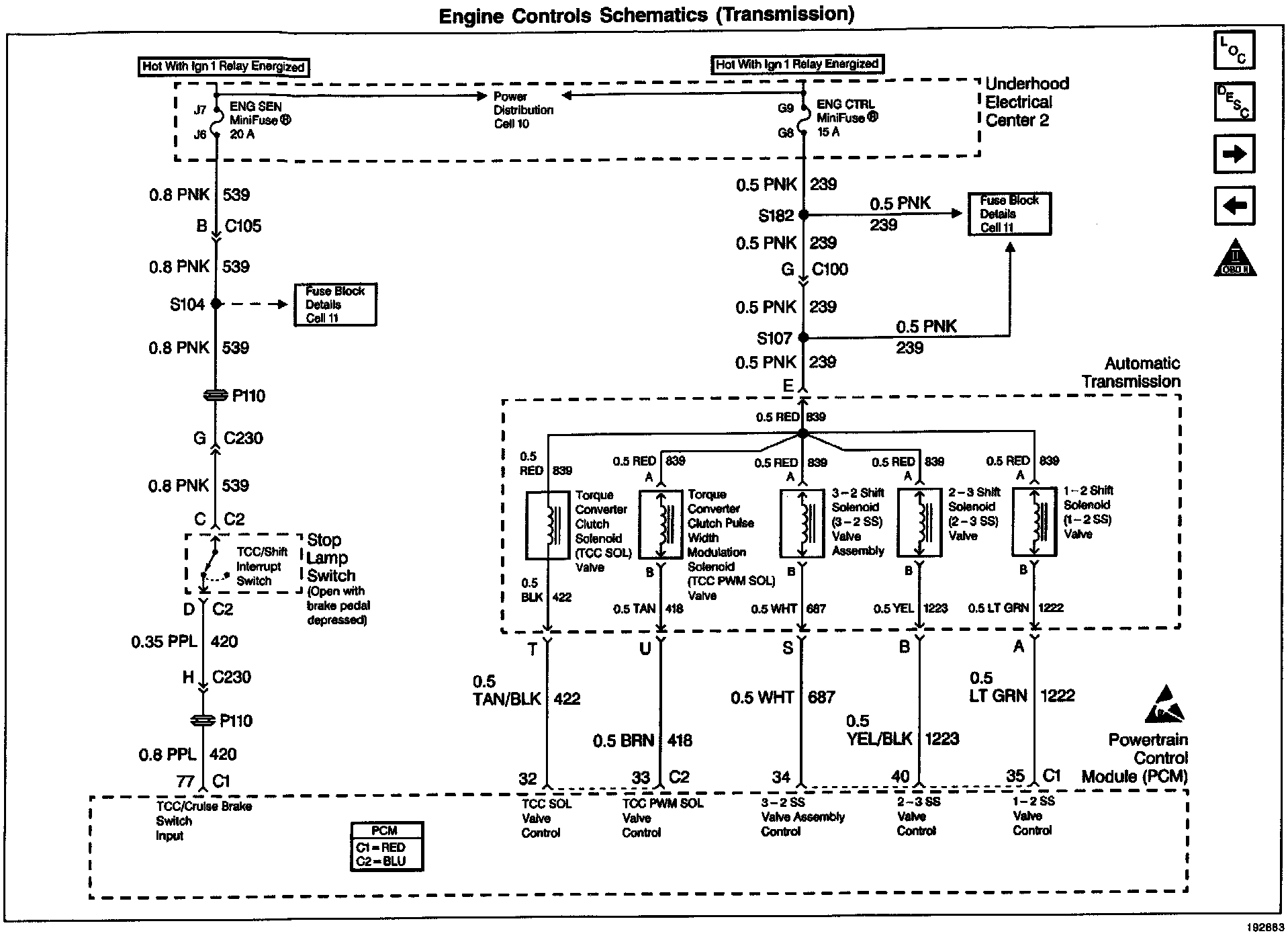

Wiring Diagram:
