Home
>>
Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Delivery & Controls
>>
Fuel Pump Controls
Fuel Pump Controls

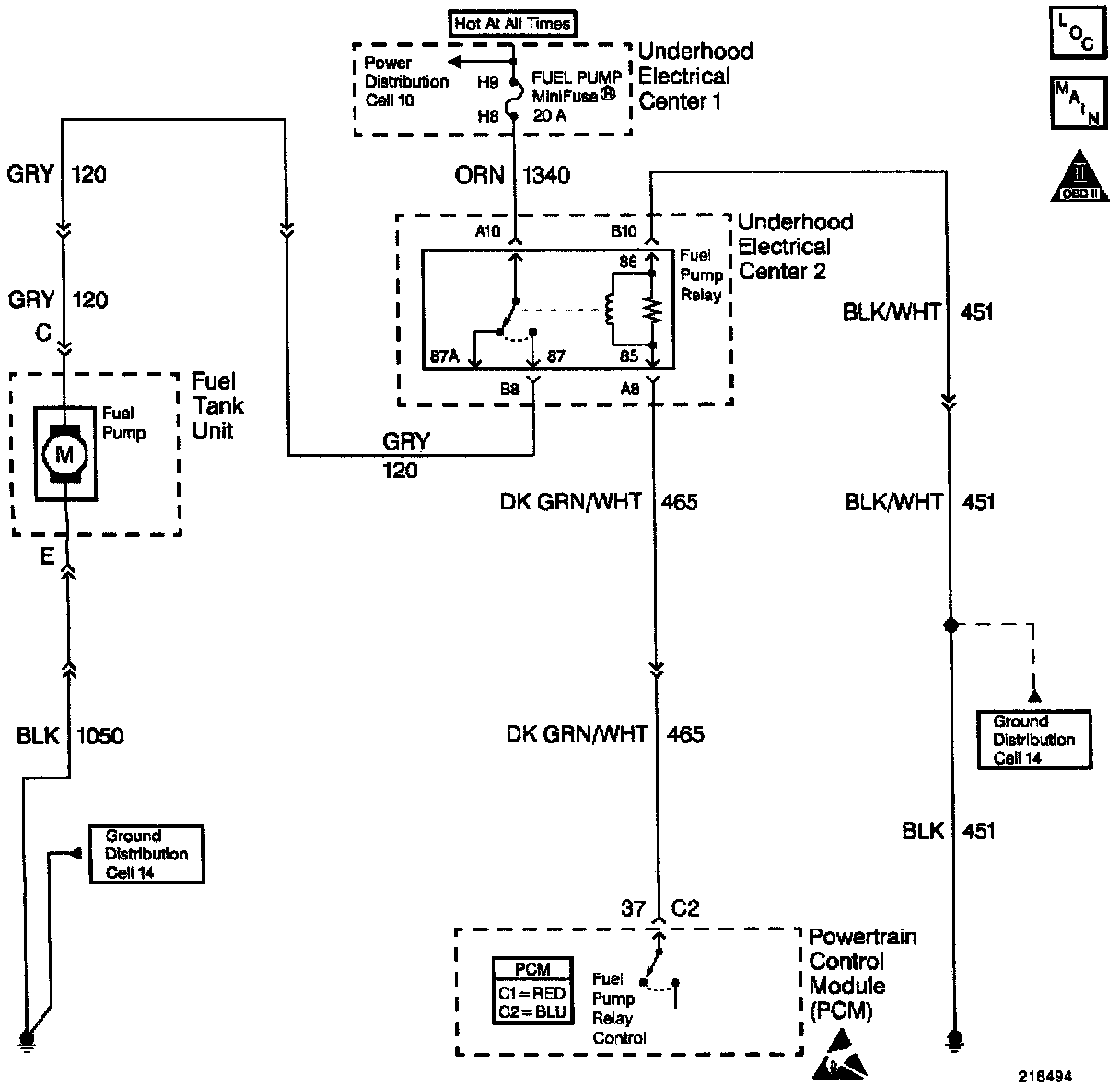

Wiring Diagram:

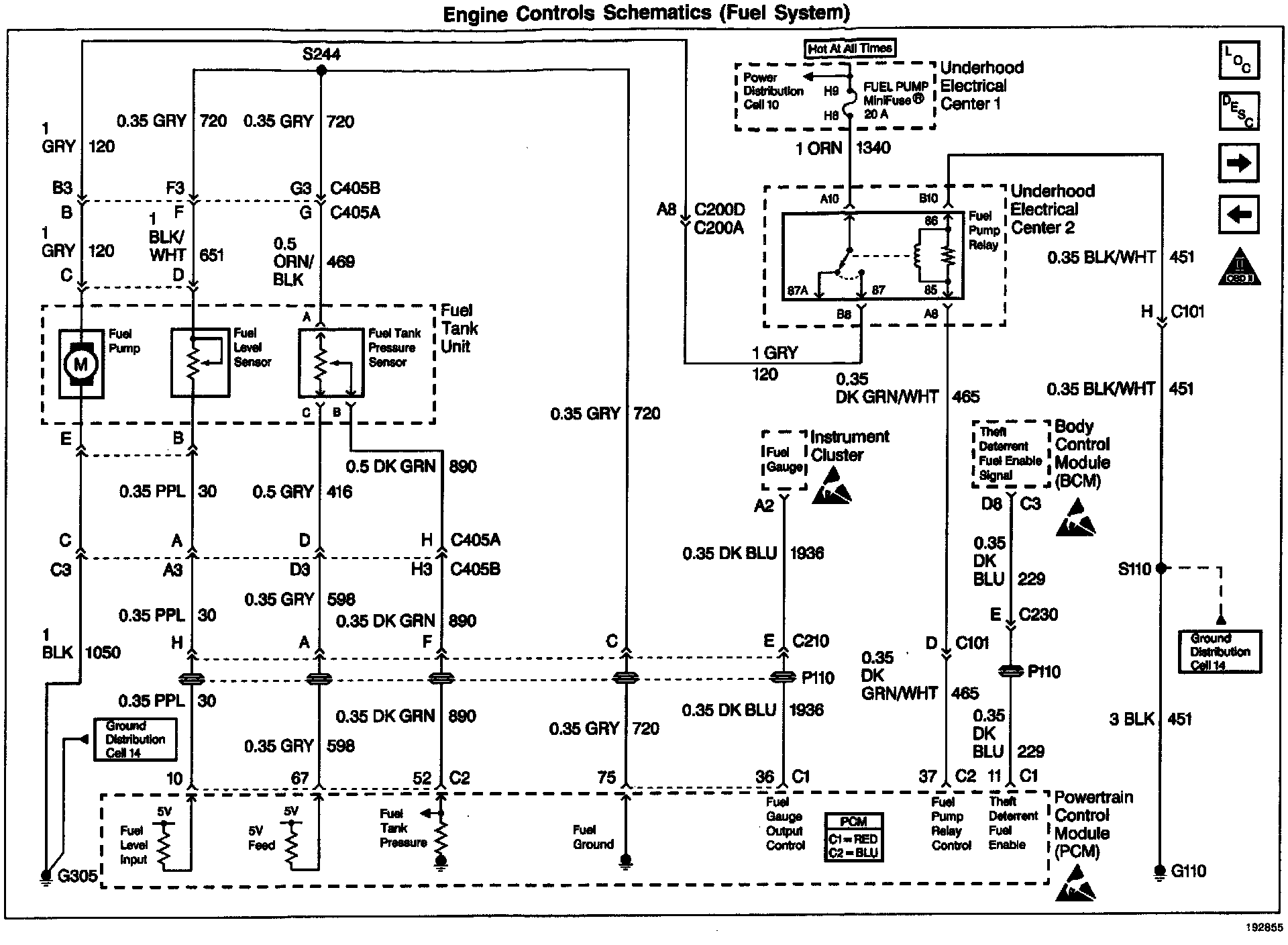

Wiring Diagram:
