Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emission Controls
>>
Secondary AIR Injection System
Secondary AIR Injection System

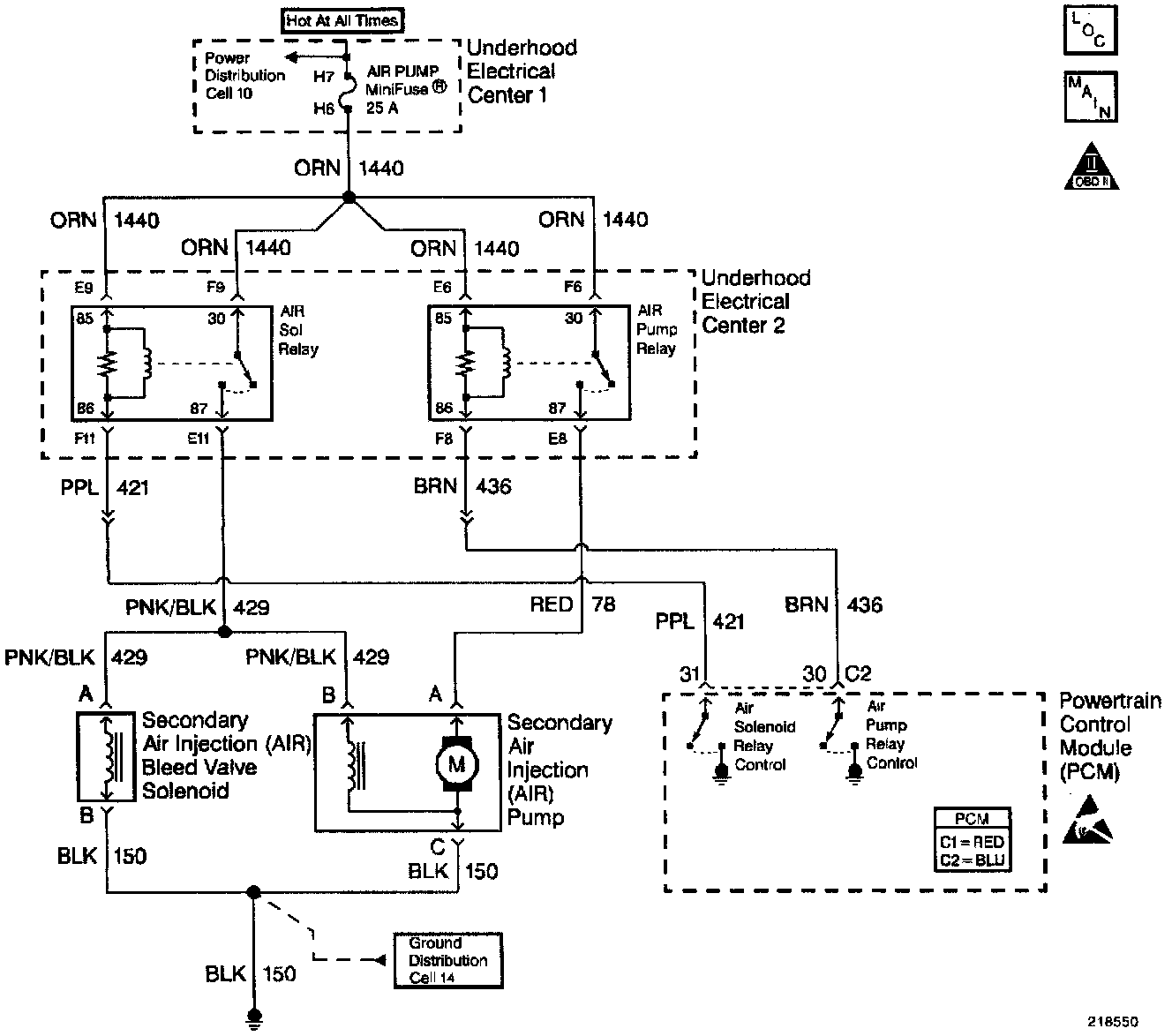

Wiring Diagram:
