Catalyst Oxygen Storage Capacity

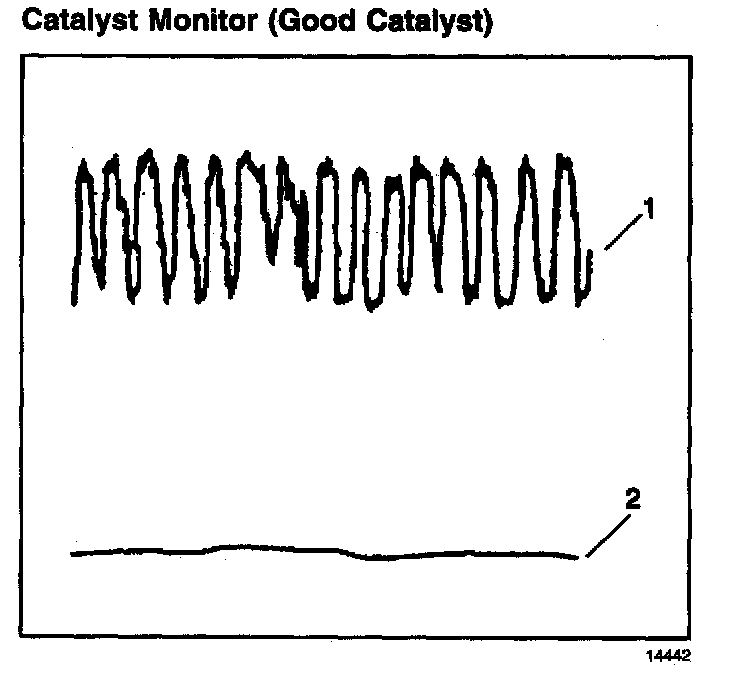

Catalyst Monitor (Good Catalyst):

The PCM must monitor the Three-Way catalyst system (TWO) for efficiency. In order to accomplish this, the PCM monitors the pre-catalyst and post-catalyst oxygen sensors. When the TWC is operating properly, the post-catalyst (2) oxygen sensor will have significantly less activity than the pre-catalyst (1) oxygen sensor. The TWC stores oxygen during its normal reduction and oxidation process. The TWC releases oxygen during its normal reduction and oxidation process. The PCM calculates the oxygen storage capacity using the difference between the pre-catalyst and post-catalyst oxygen sensor s voltage levels.

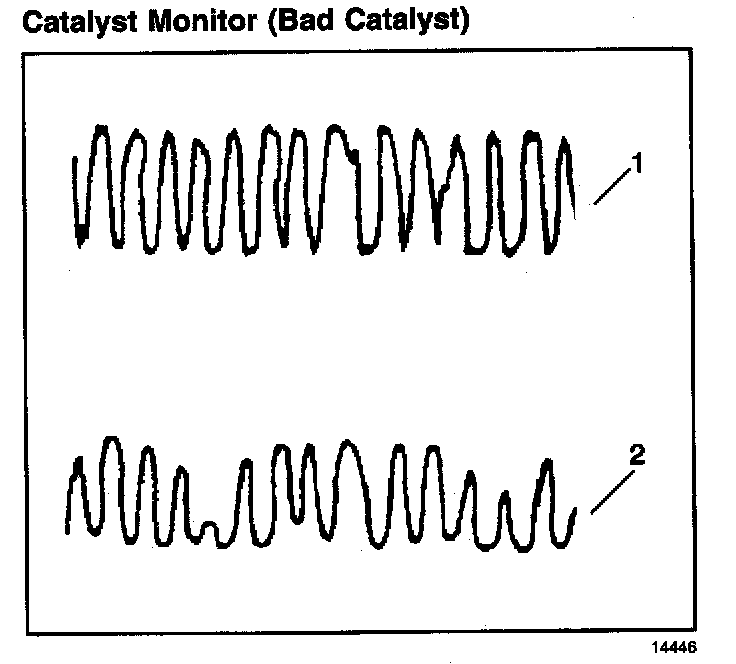

Catalyst Monitor (Bad Catalyst):

Whenever the voltage levels of the post-catalyst (2) oxygen sensor nears the voltage levels that of the pre-catalyst (1) oxygen sensor, the catalysts efficiency is degraded.

Aftermarket HO2S characteristics may be different from the original equipment manufacturer sensor. This may lead to a false pass or a false fail of the catalyst monitor diagnostic. Similarly, if an aftermarket catalyst does not contain the same amount of cerium as the original part, the correlation between oxygen storage and conversion efficiency may be altered enough to set a false DTC.
