System Diagnostic Charts
System Diagnostic Charts

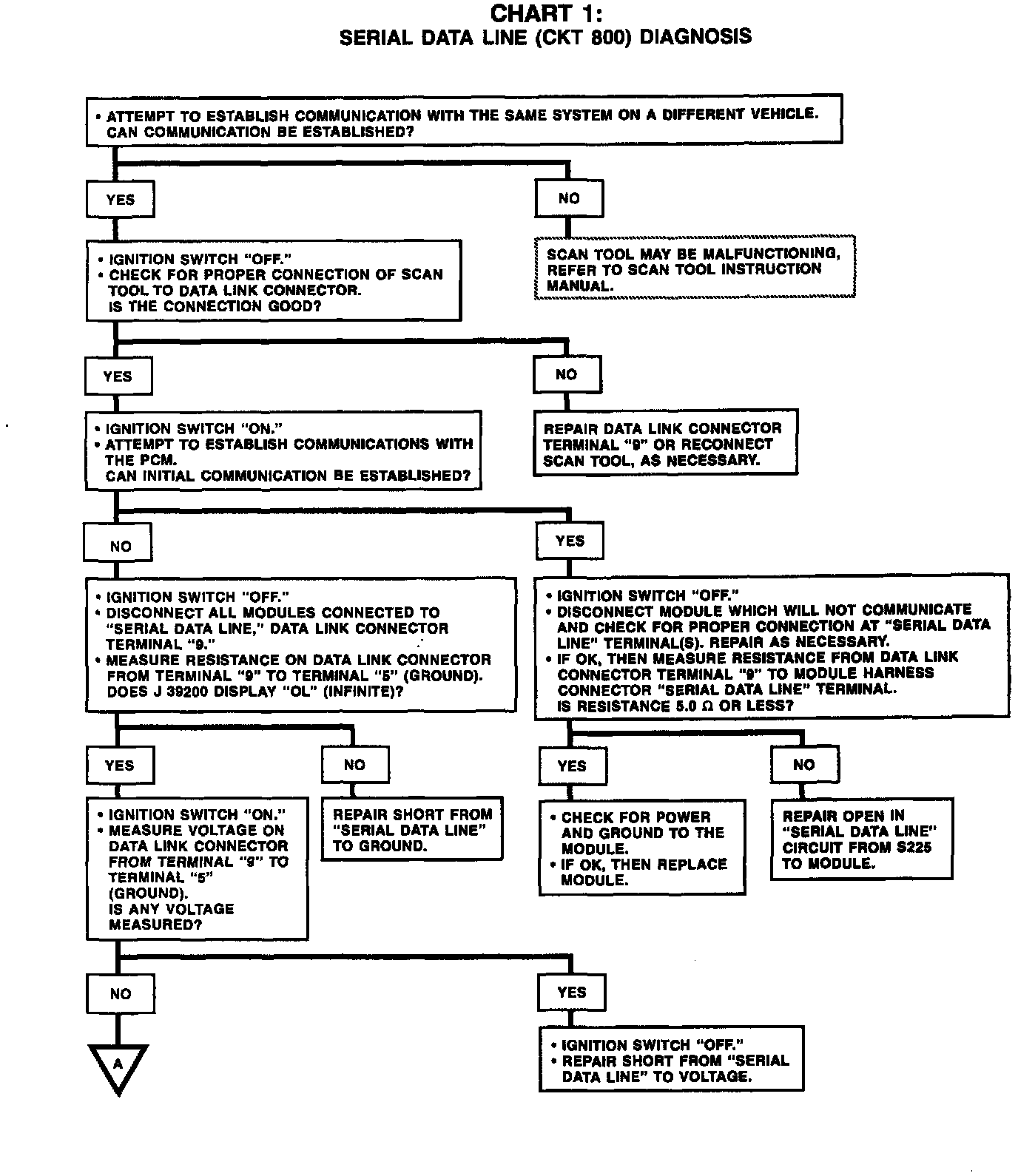

Chart #1 Serial Data Line (CKT 800) Diagnosis (Part 1 Of 2):

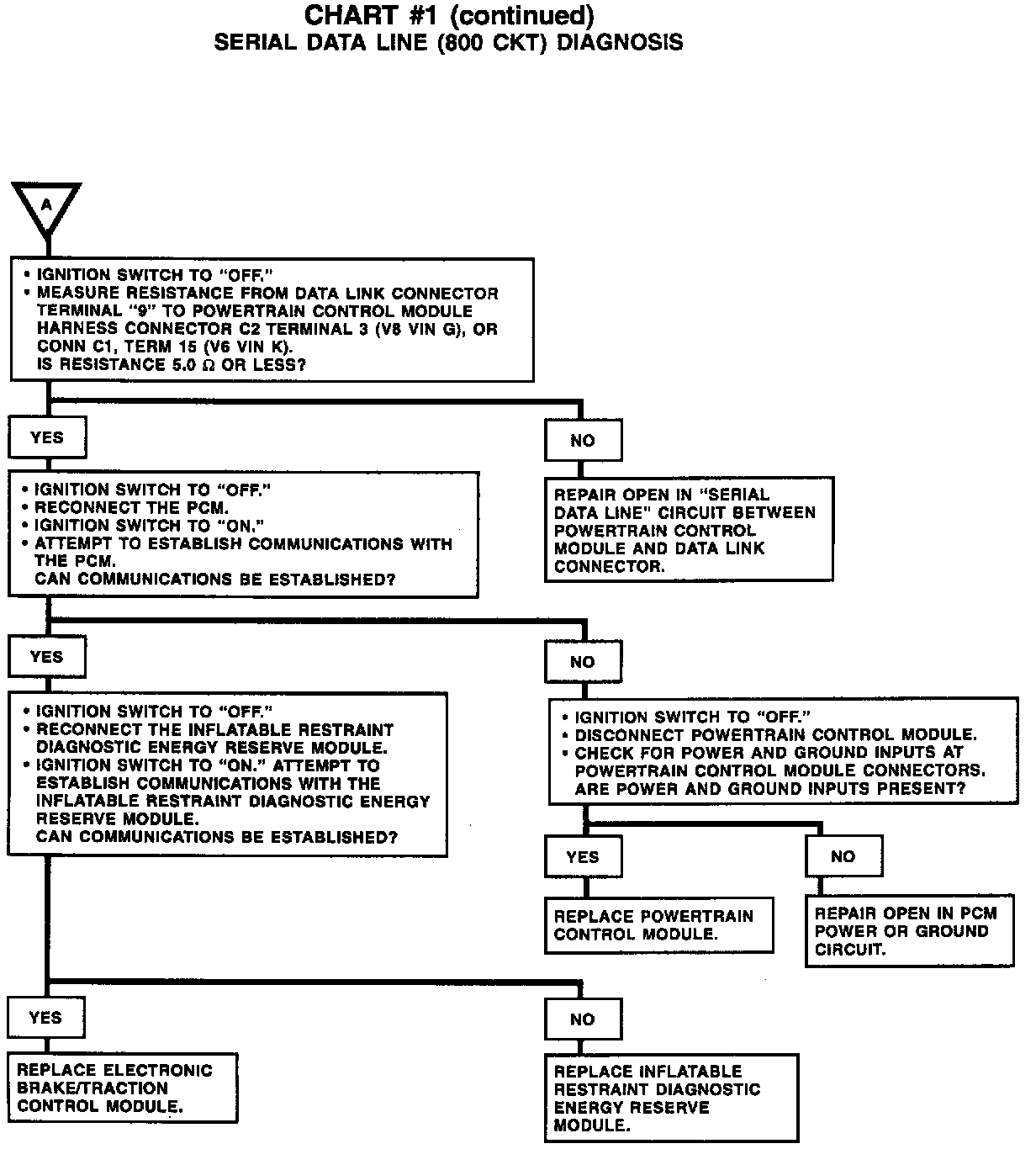

Chart #1 Serial Data Line (CKT 800) Diagnosis (Part 2 Of 2):
