Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Fuses 4, 6 and Circuit Breaker 12

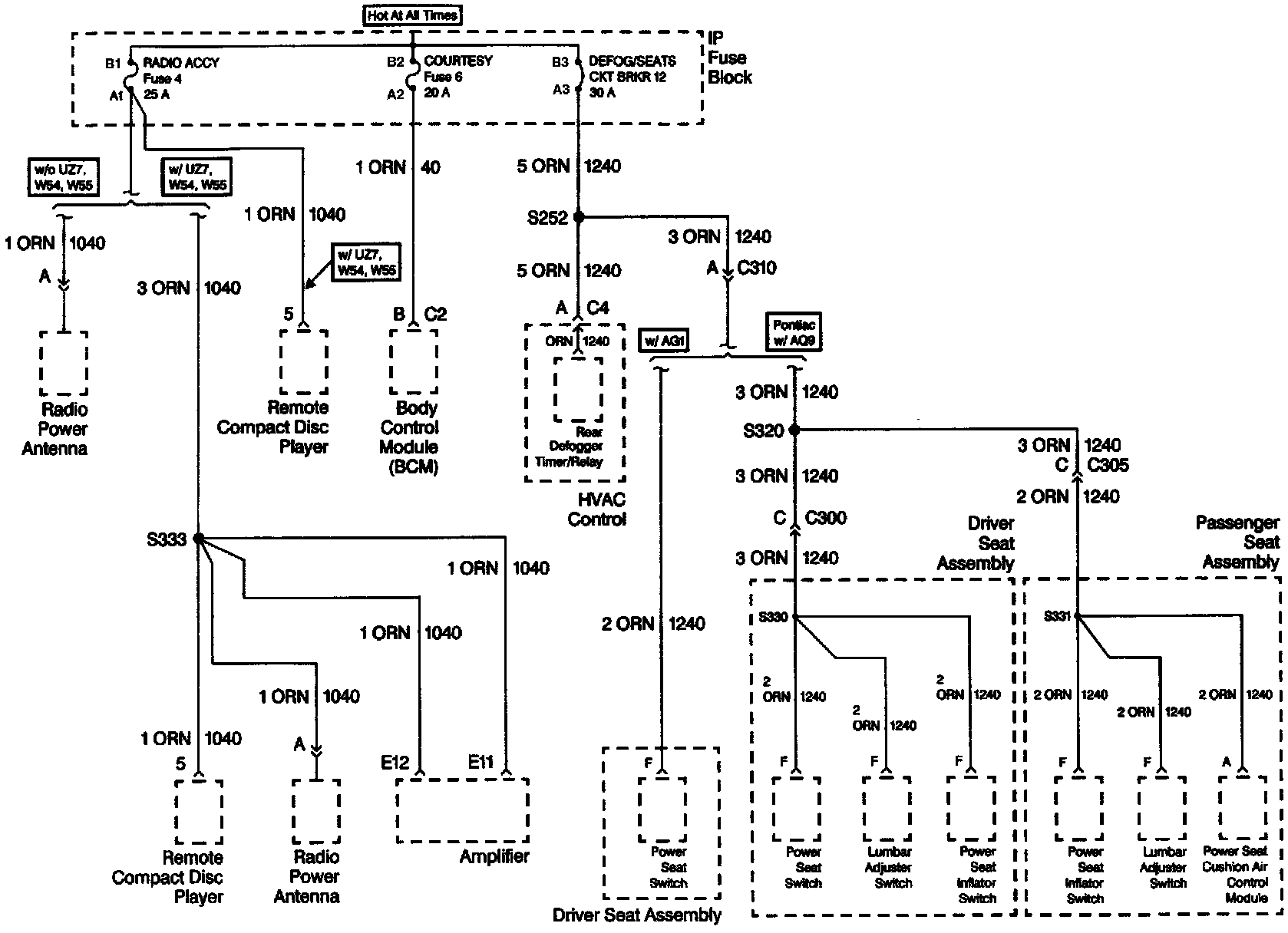

Fuses 4, 6 and Circuit Breaker 12

I/P Fuses 4,6 And Circuit Breaker 12:
