Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G106

G106

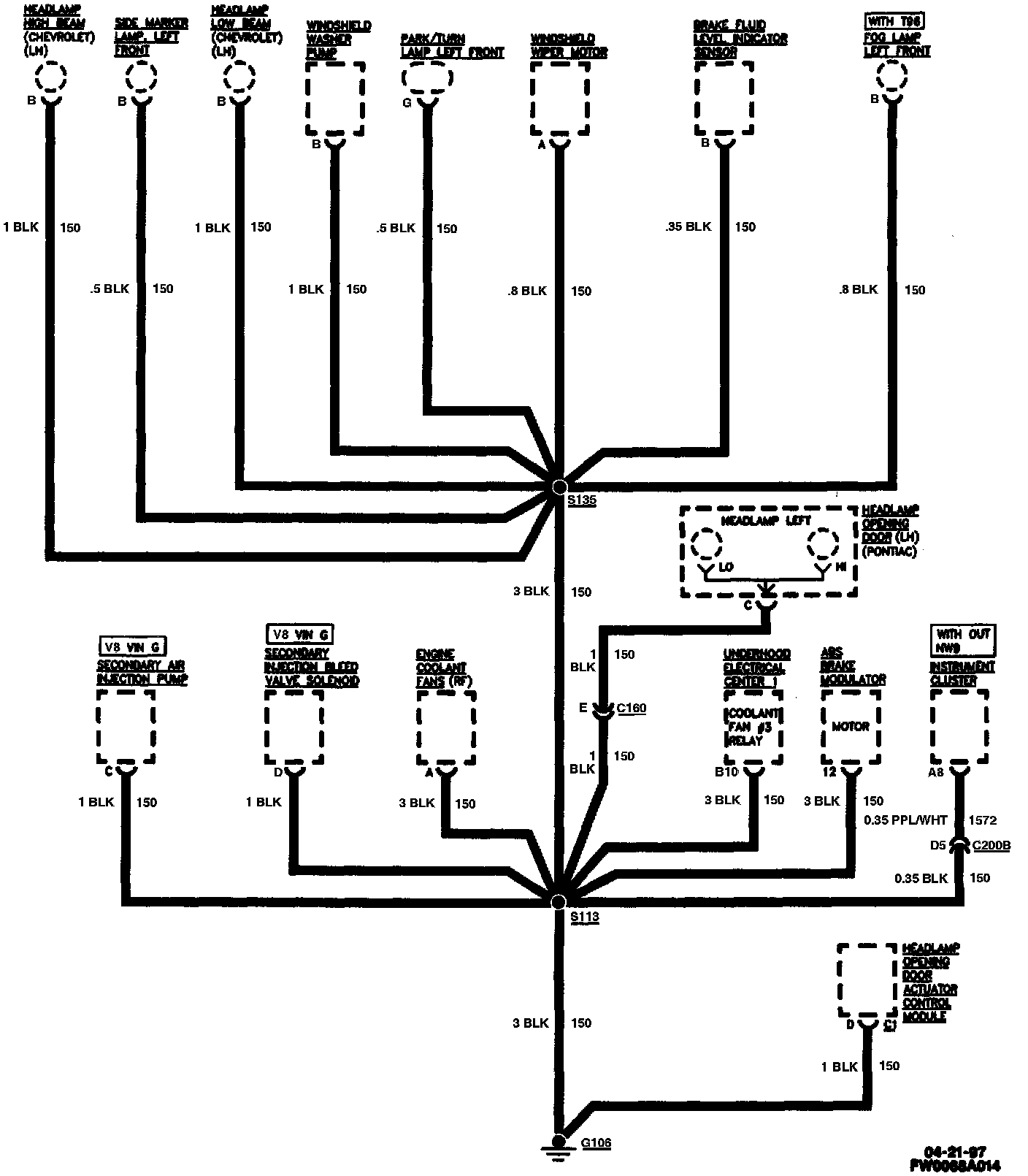

G106: Air Pump, Coolant Fan, Headlight Door Module, Forward Lamp, Windshield Wiper And Washer:
