Radiator Hose Replacement-Outlet

REMOVAL PROCEDURE
1. Drain the engine coolant.

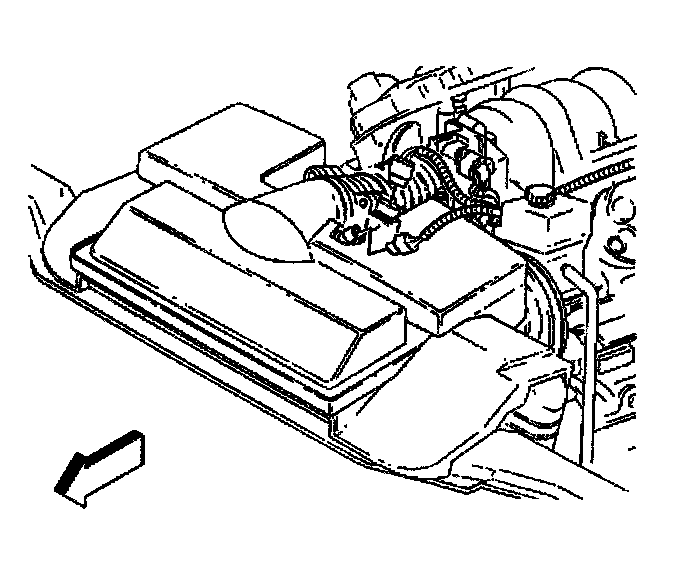

2. Disconnect the (IAT) Intake Air Temperature sensor and the (MAF) Mass Airflow sensor electrical connectors.

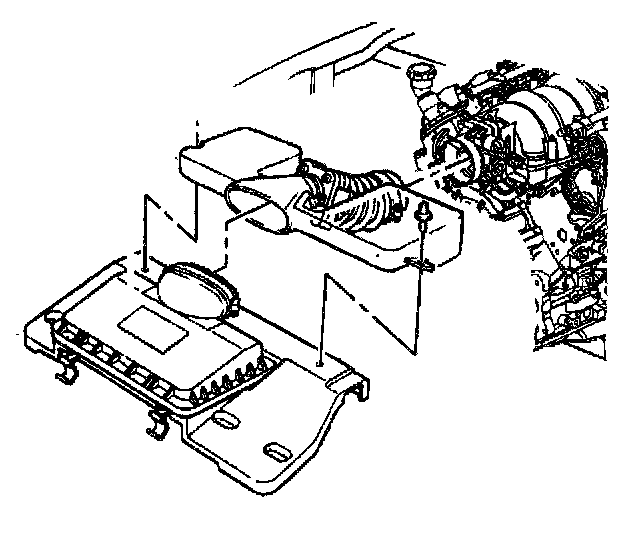

3. Remove the air intake duct.

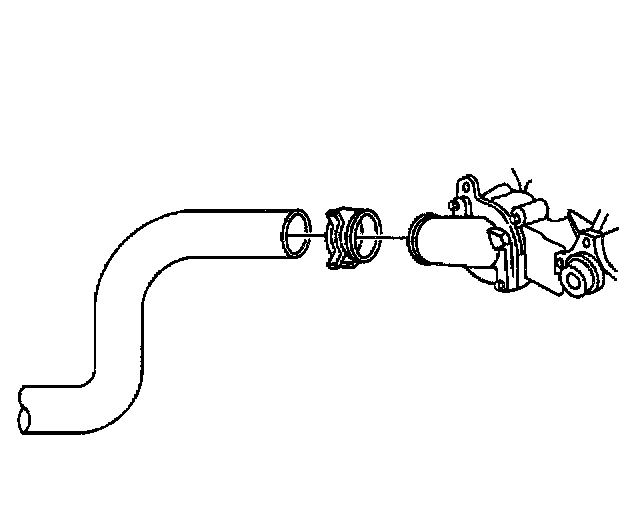

4. Remove the outlet hose from the water outlet.
5. Raise and suitably support the vehicle.

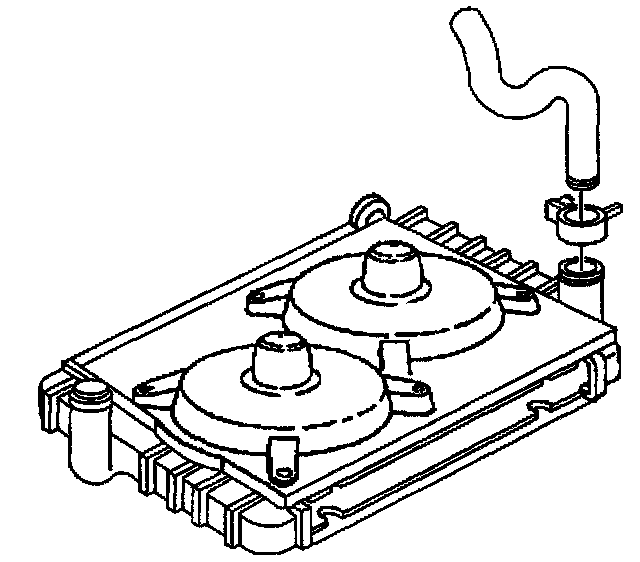

6. Remove the outlet hose from the radiator.

INSTALLATION PROCEDURE

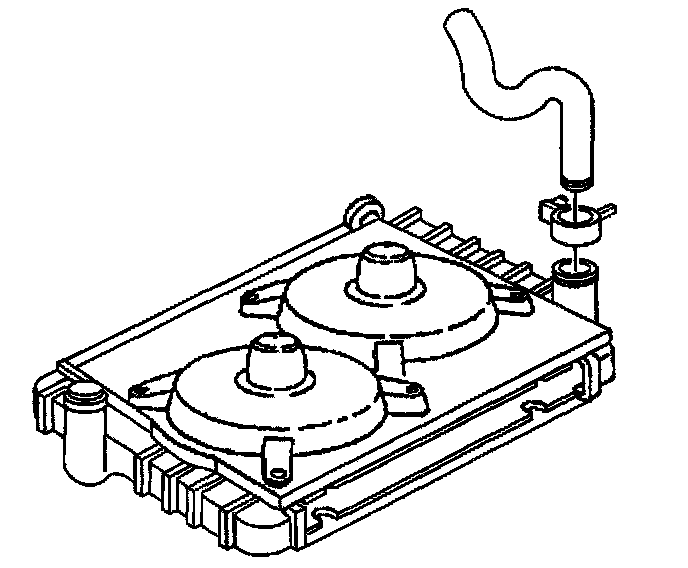

1. Install the outlet hose to the radiator.
2. Lower the vehicle.

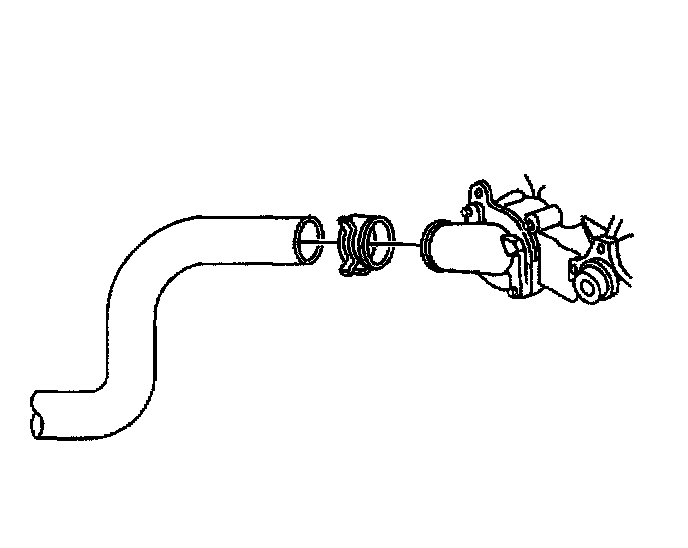

3. Install the outlet hose to the water outlet.

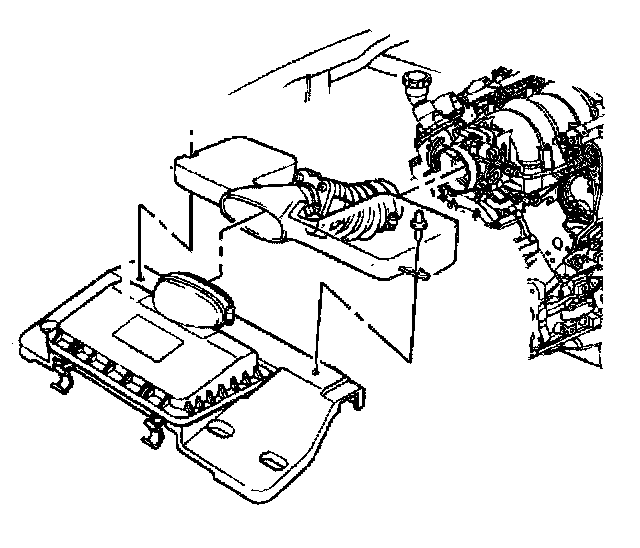

4. Install the air intake duct.





5. Connect the IAT sensor and the MAF sensor electrical connectors.
6. Refill the engine coolant.
