Radiator Hose Replacement - Inlet

REMOVAL PROCEDURE
1. Drain the engine coolant.





2. Disconnect the (IAT) Intake Air Temperature sensor and (MAF) Mass Airflow sensor electrical connectors.

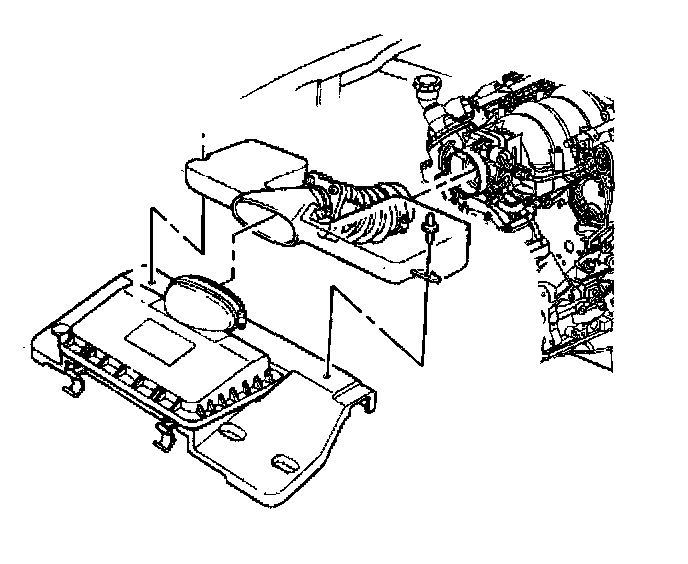

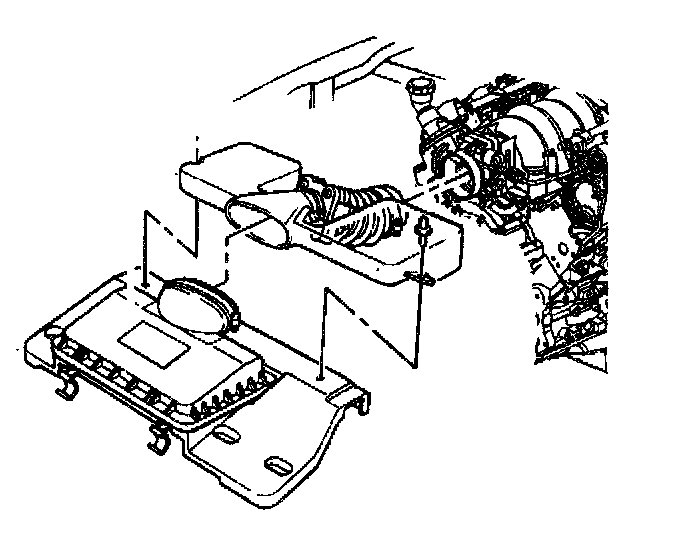

3. Remove the air intake duct.

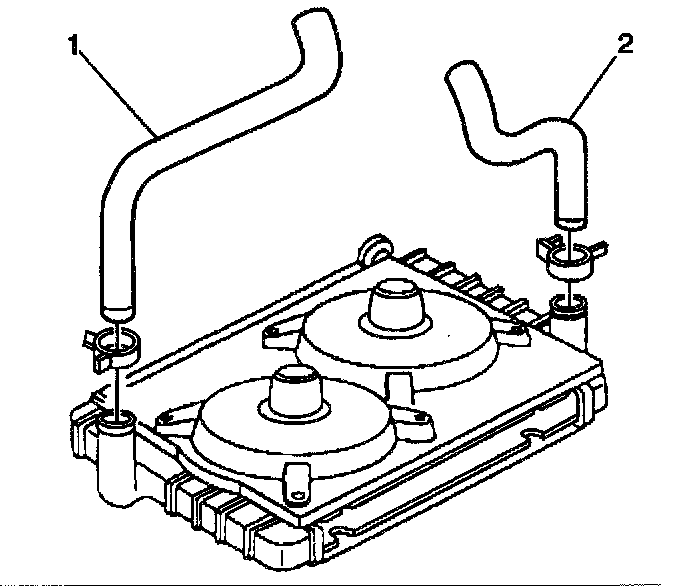

4. Remove the inlet hose (1) from the radiator.

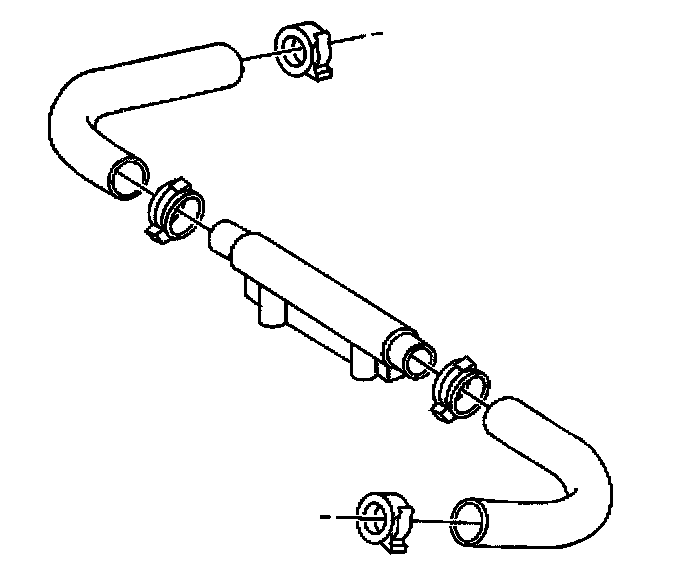

5. Remove the inlet hose from the power steering cooler, if equipped.
6. Remove the inlet hose from the power steering cooler to the water pump, if equipped.

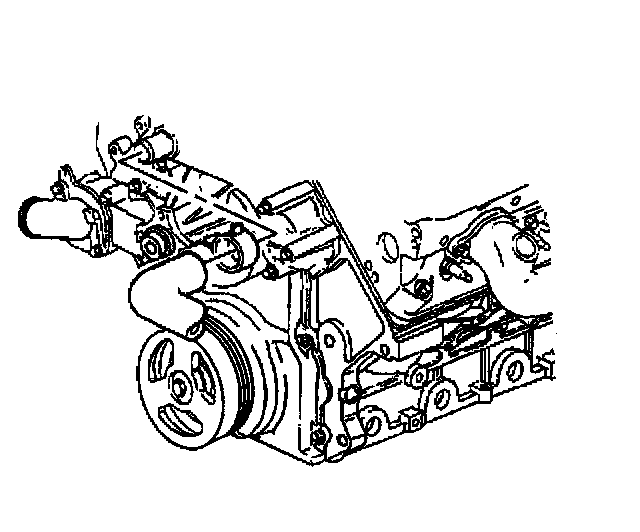

7. Remove the inlet hose from the water pump.

INSTALLATION PROCEDURE

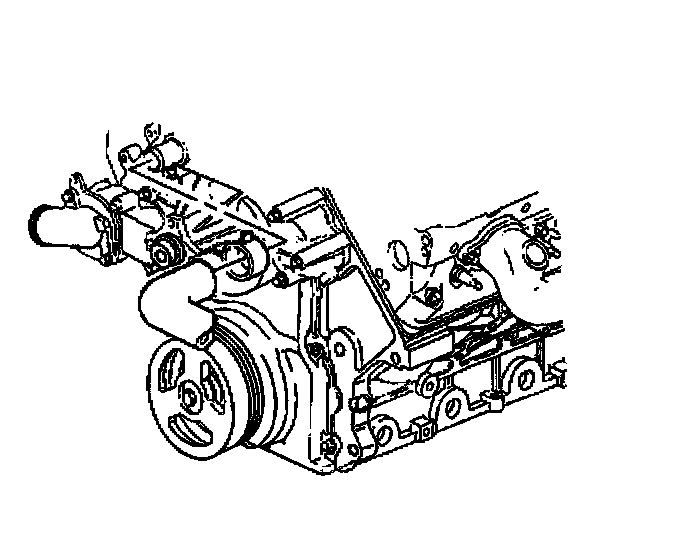

1. Install the inlet hose to the water pump.

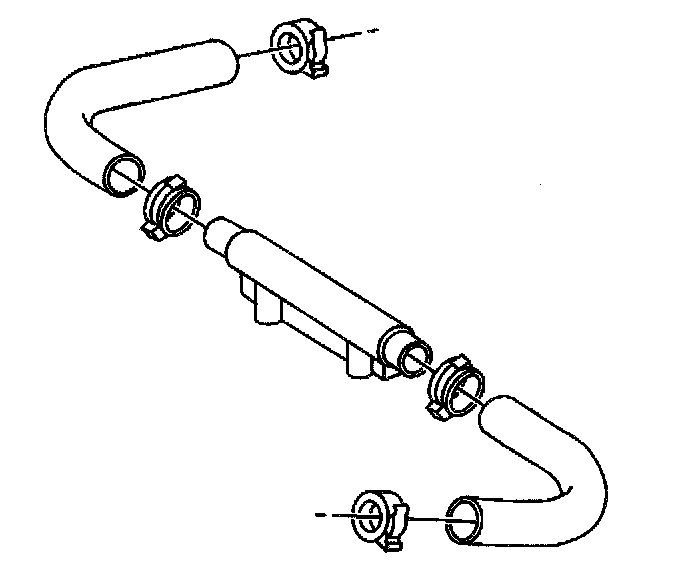

2. Install the inlet hose to the power steering cooler, if equipped.
3. Install the inlet hose to the power steering cooler and the water pump, if equipped.

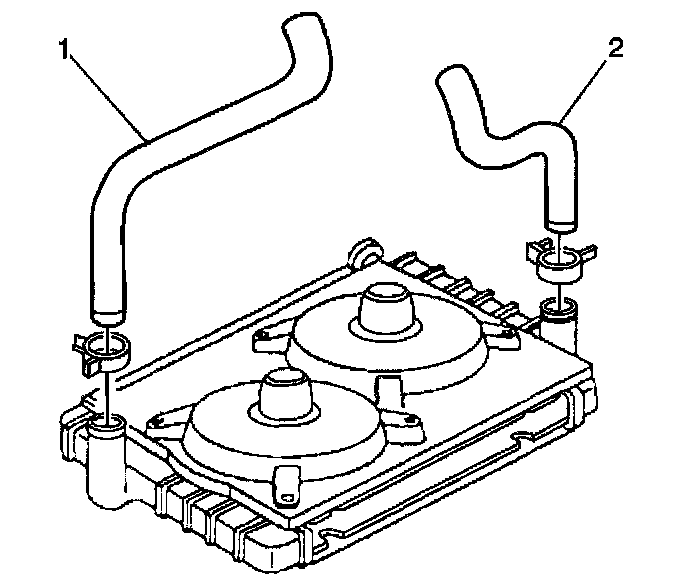

4. Install the inlet hose (1) to the radiator.

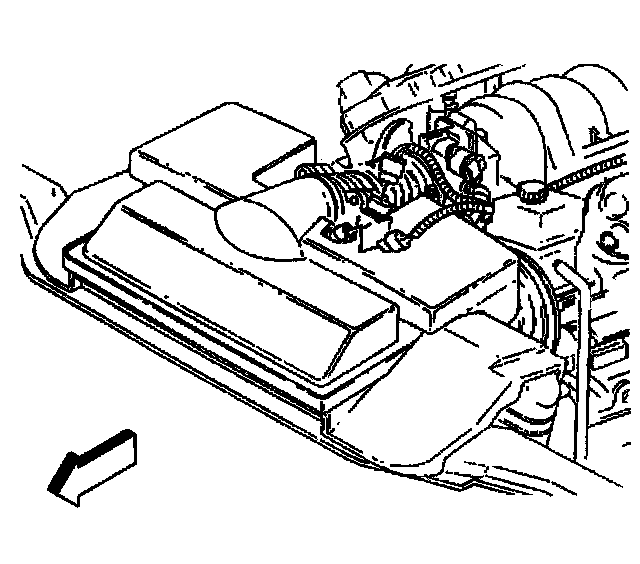

5. Install the air intake duct.





6. Connect the IAT sensor and the MAF sensor electrical connectors.
7. Refill the coolant system.
