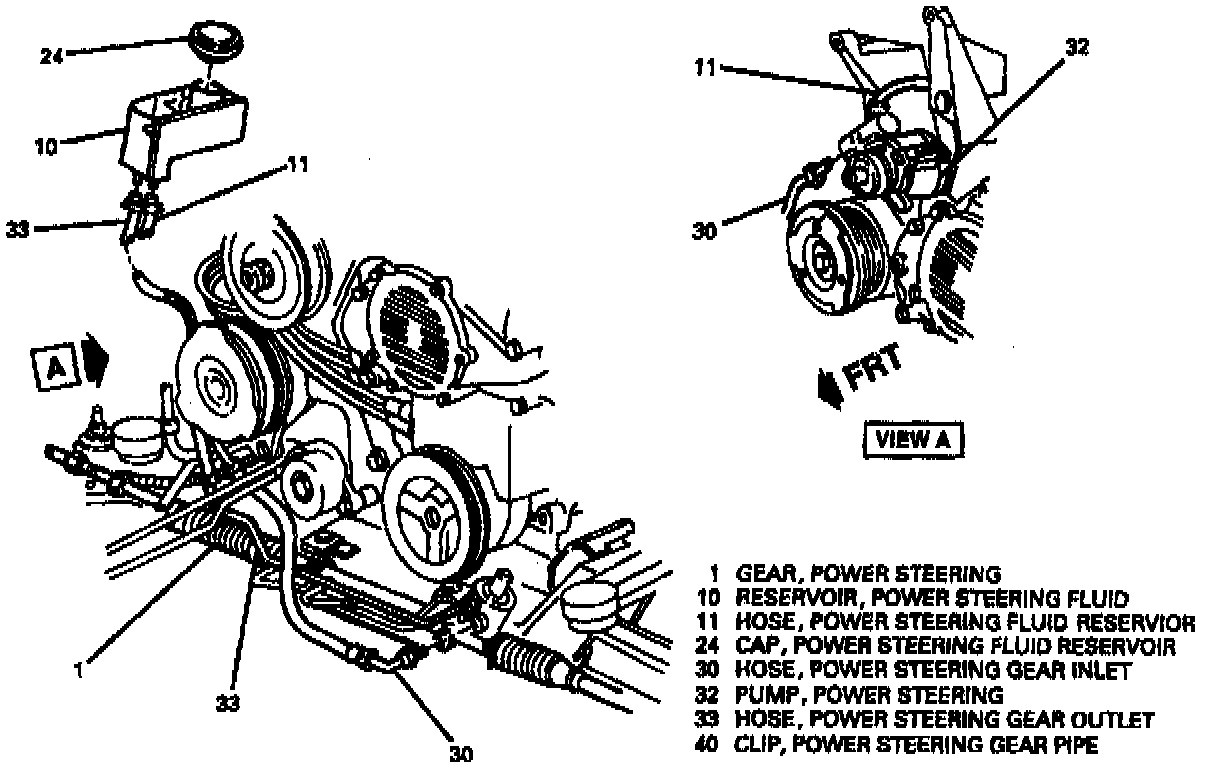

Power Steering Fluid Reservoir Hose

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Drain engine coolant.
3. Serpentine belt.
4. Lower vehicle.
5. Front air intake duct.
6. Generator.
7. Radiator outlet hose from engine.
8. Heater inlet and outlet hoses from water pump.
9. Throttle body heater return hose from heater outlet.
10. Power steering pump bolts/screws.

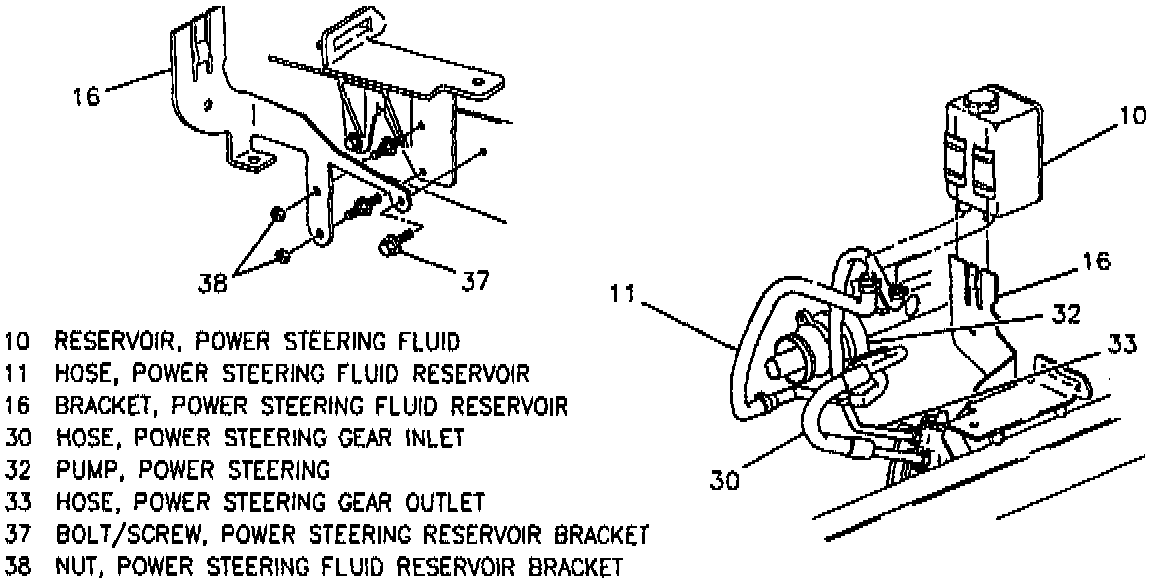

11. Reservoir hose (11) from pump (32).
12. Power steering fluid reservoir bolt/screw and power steering fluid reservoir retainer from reservoir.
13. Reservoir hose (11) from reservoir (10).

INSTALL OR CONNECT

NOTICE: Do not start the vehicle with any power steering gear inlet or outlet hoses disconnected. When disconnected, cap or plug all openings of components. Failure to do so could result in contamination or loss of power steering fluid and damage to the system.

1. Reservoir hose (11) to reservoir (10) using clamp. Lubricate with power steering fluid as required.
2. Power steering fluid reservoir retainer and power steering fluid reservoir bolt/screw.
3. Reservoir hose (11) to pump (32).
4. Power steering pump bolts/screws.
5. Throttle body heater return hose to heater outlet hose.
6. Heater inlet and outlet hoses to water pump.
7. Radiator outlet hose from engine.
8. Generator.
9. Front air intake duct.
10. Raise and suitably support vehicle.
11. Serpentine belt.
12. Lower vehicle.
13. Refill and bleed engine coolant. .
14. Refill and bleed power steering system.
