Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Locations >> Component Locations >> Miscellaneous Components >> Engine Wiring Harness

Engine Wiring Harness

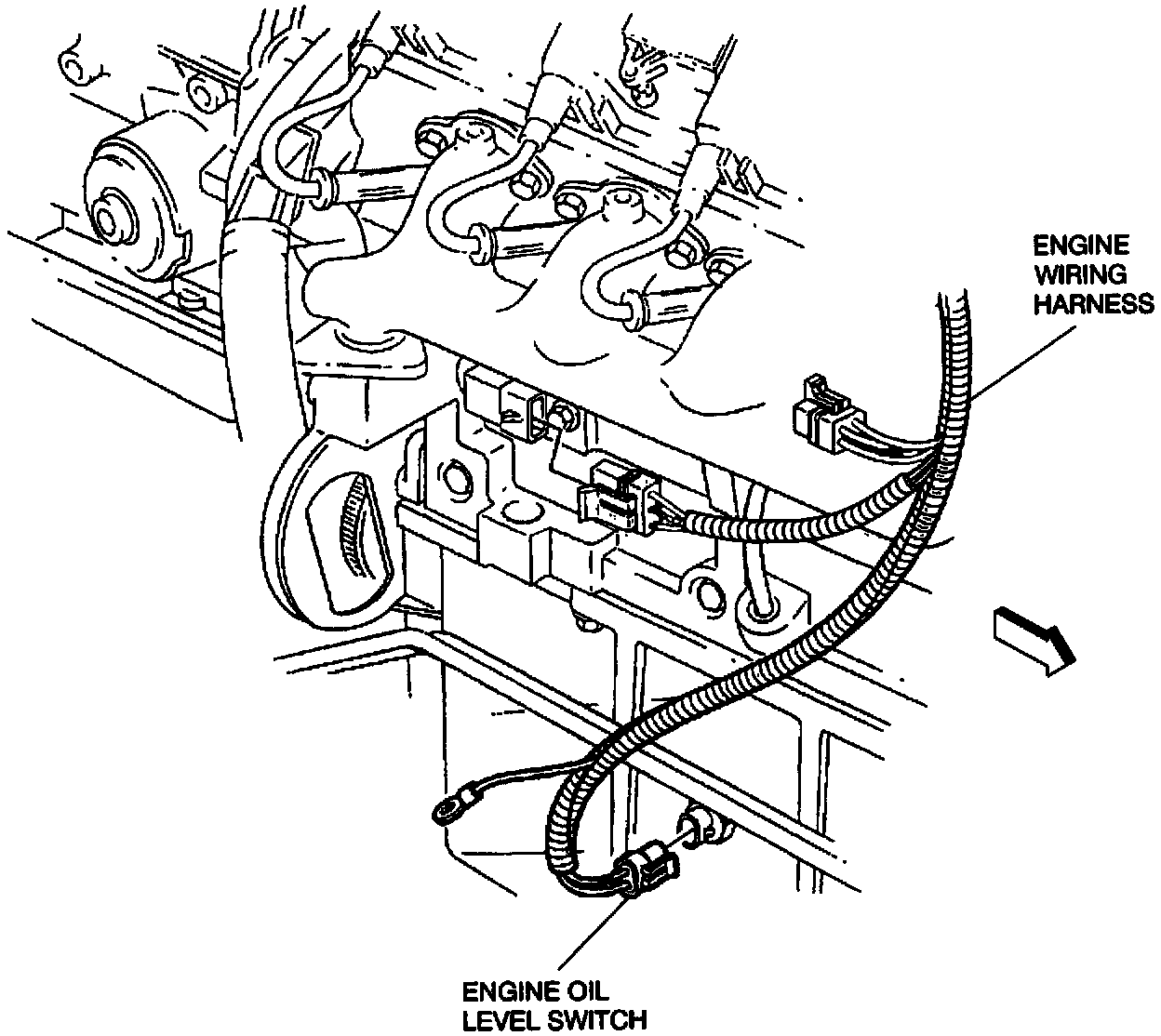

Lower Right Side Of Engine:

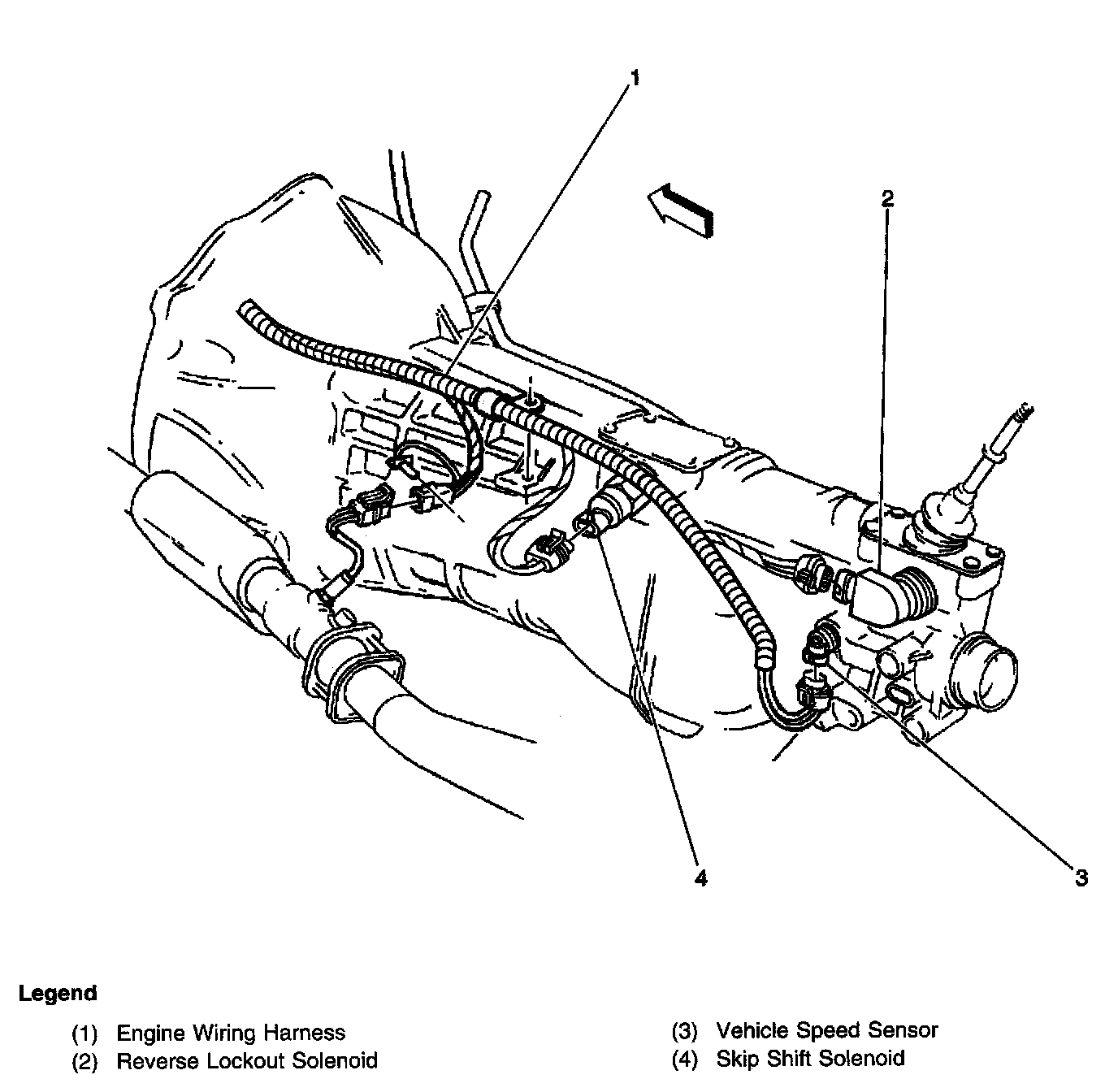

Right Side Of Manual Transmission:

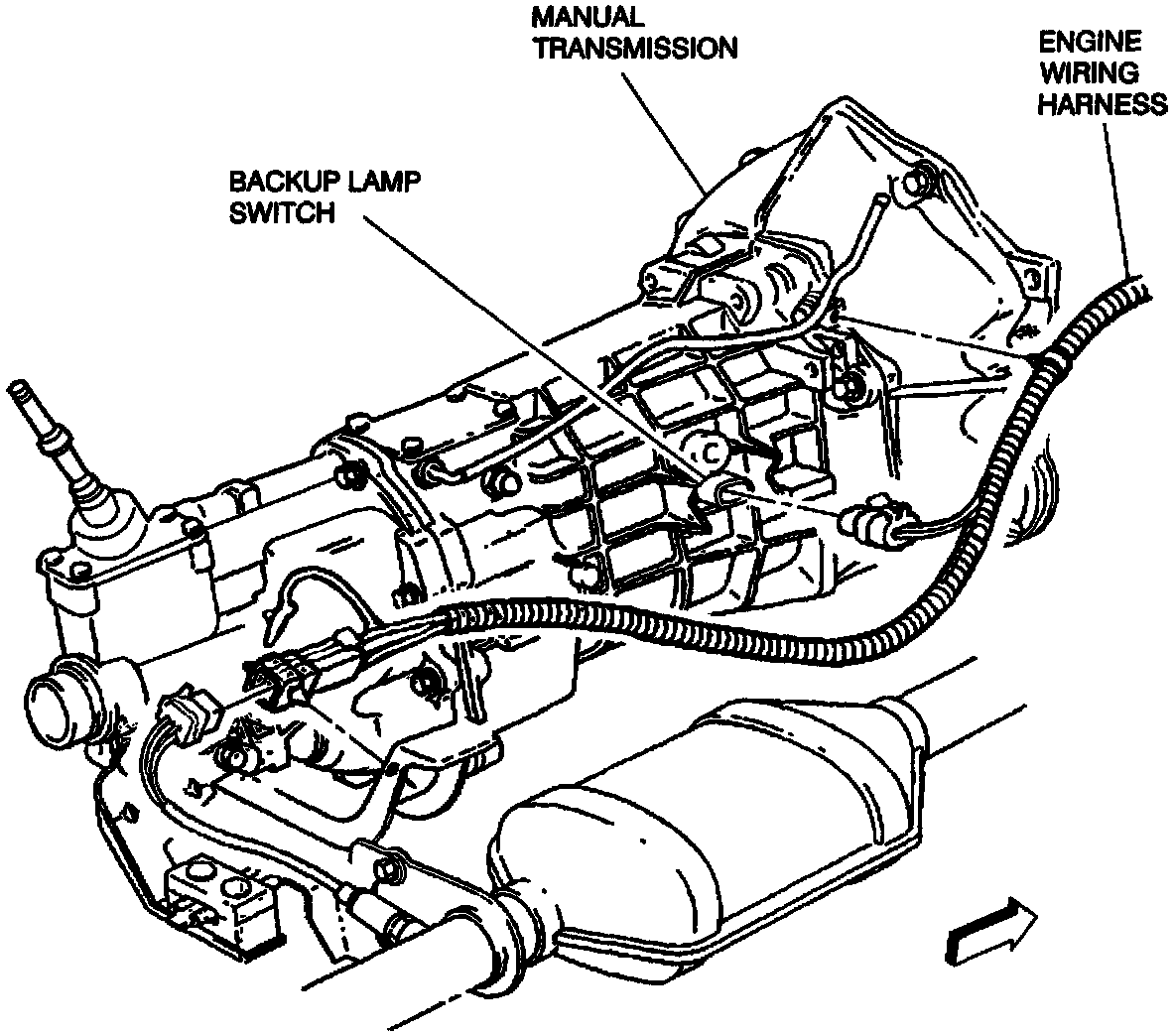

Locations View:

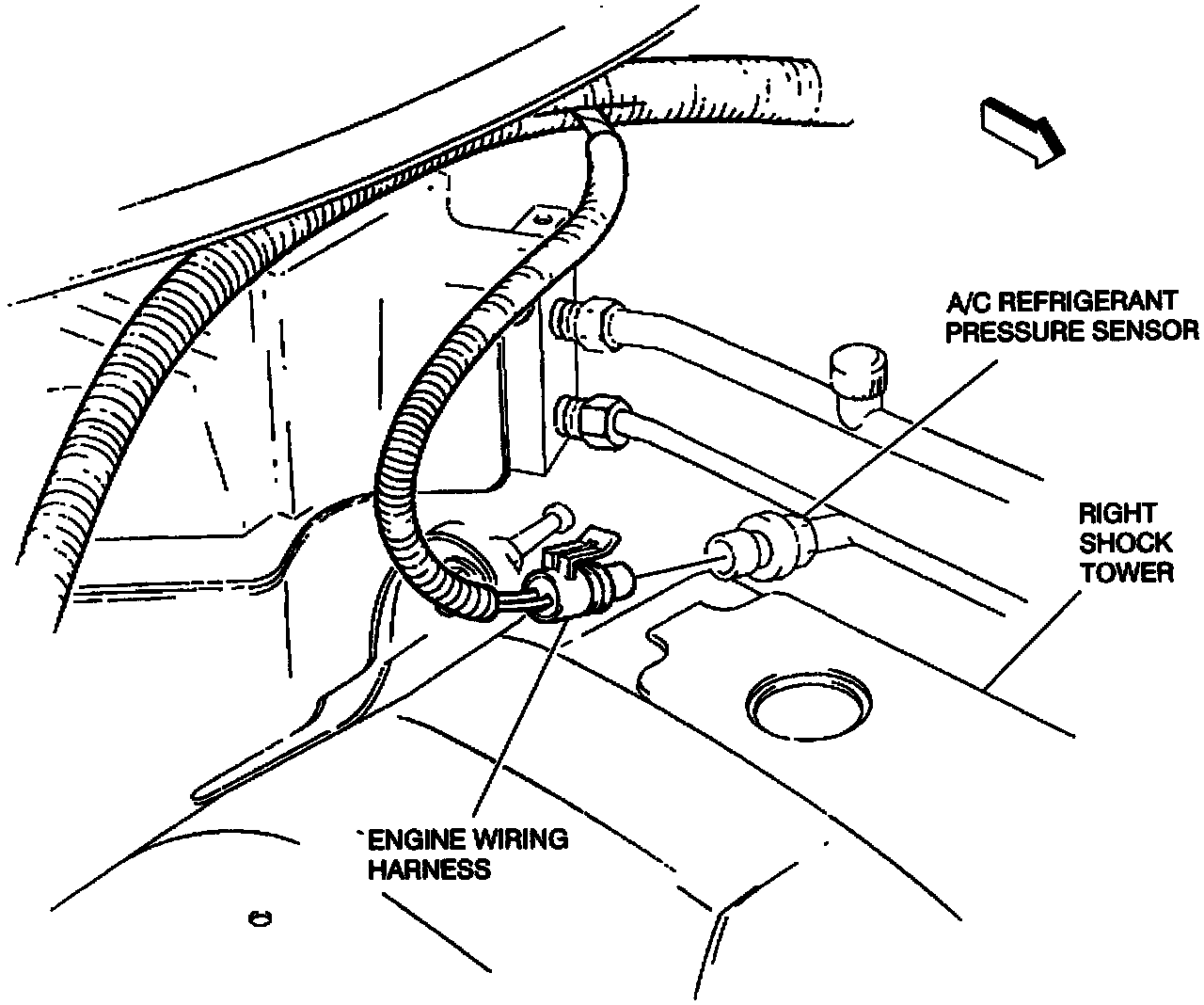

Rear Right Side Of Engine Compartment:
