Side Marker Lamp Replacement

REMOVAL PROCEDURE

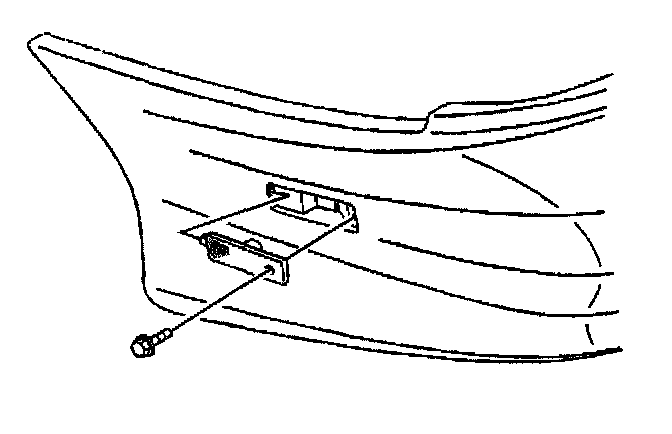

1. Remove the rear sidemarker lamp screw from the rear sidemarker lamp.




2. Remove the harness socket from the rear sidemarker lamp.
3. Remove the rear sidemarker lamp from the rear fascia.

INSTALLATION PROCEDURE




1. Install the rear sidemarker lamp from the rear fascia.
2. Install the harness socket from the rear sidemarker lamp.

NOTE: Refer to Fastener Notice in Cautions and Notices.




3. Install the rear sidemarker lamp screw to the rear sidemarker lamp.

Tighten
Tighten the rear sidemarker lamp screw to 1.4 N.m (12 lb in).
