License Plate Lamp: Service and Repair

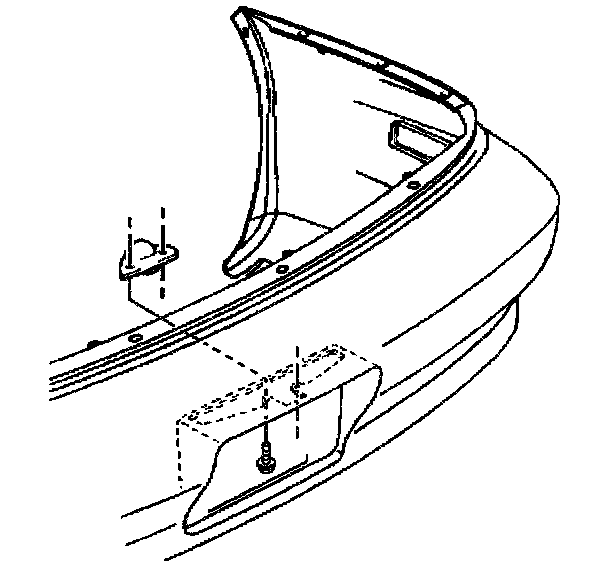

REMOVAL PROCEDURE




1. Disconnect the rear license lamp electrical connector.




2. Remove the rear license lamp screws.
3. Remove the rear license lamp from the rear bumper fascia.

INSTALLATION PROCEDURE




1. Install the rear license lamp to the rear bumper fascia.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the rear license lamp screws.

Tighten
Tighten the rear license lamp screws to 1.9 N.m (17 lb in).




3. Connect the rear license lamp electrical connector.
