Headlamp Bezel Replacement

REMOVAL PROCEDURE




1. Turn the ignition key to the RUN position (4).
2. Turn the headlamps ON, then turn the switch back to park lamps.
This will leave the headlamps in the up position with the lamps off.
3. Turn the ignition key to the OFF position (1).




4. Open the hood.

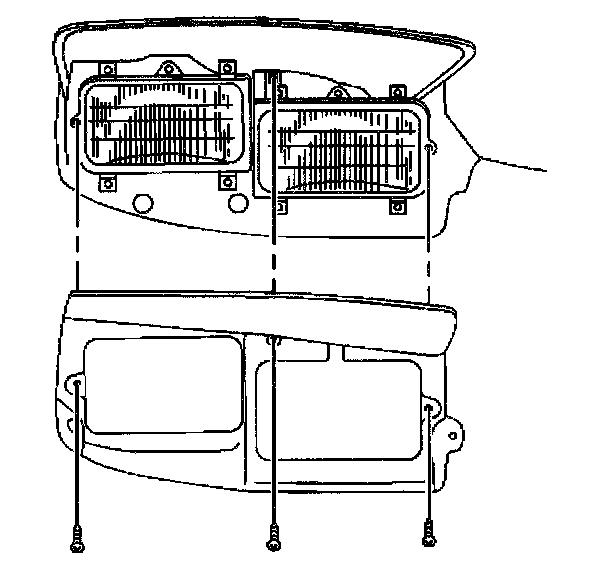

5. Remove the headlamp bezel screws.
6. Remove the headlamp bezel.

INSTALLATION PROCEDURE




1. Install the headlamp bezel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the headlamp bezel screws.

Tighten
Tighten the headlamp bezel screws to 1.7 N.m (15 lb in).

3. Close the hood.
4. Turn the headlamp switch off.
