Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Cover >> Testing and Inspection >> Diagnostic Charts >> Chart #3 Right Hand Headlamp Door Stays Open or Closed

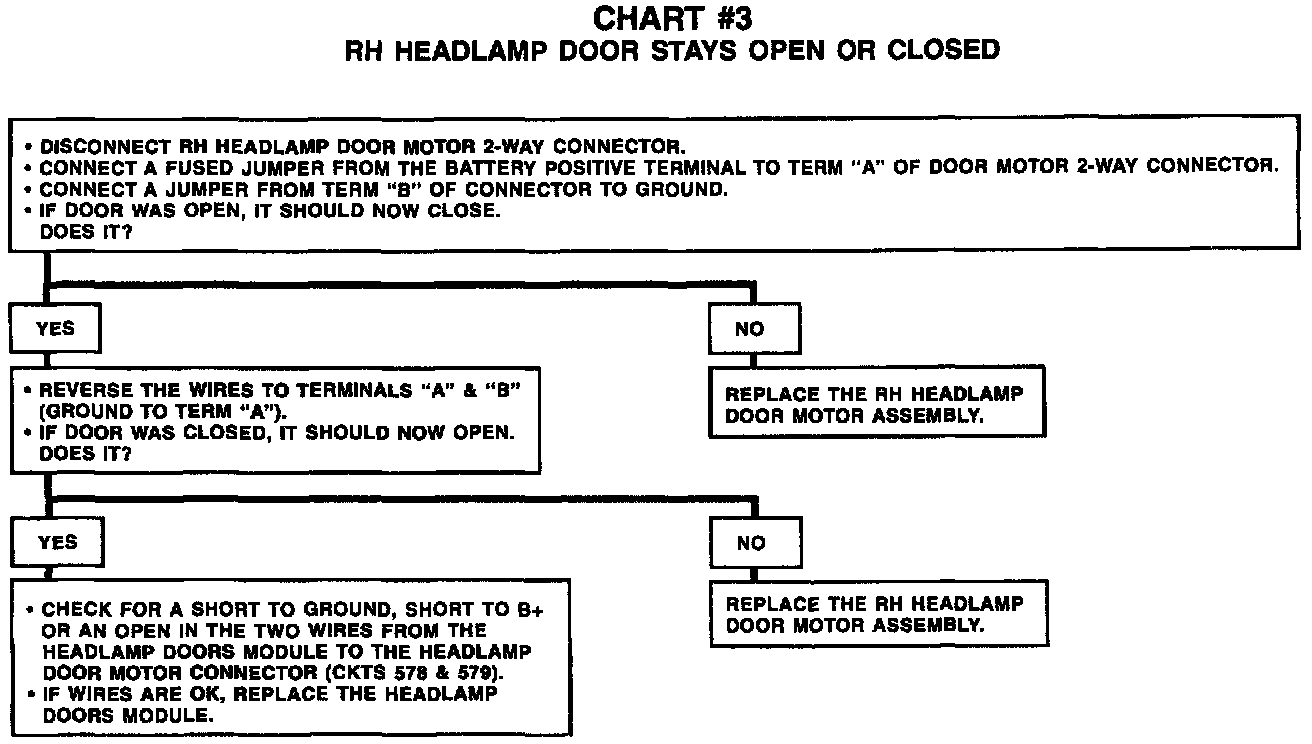

Chart #3 Right Hand Headlamp Door Stays Open or Closed

Chart #3 RH Headlamp Door Stays Open Or Closed:
