Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

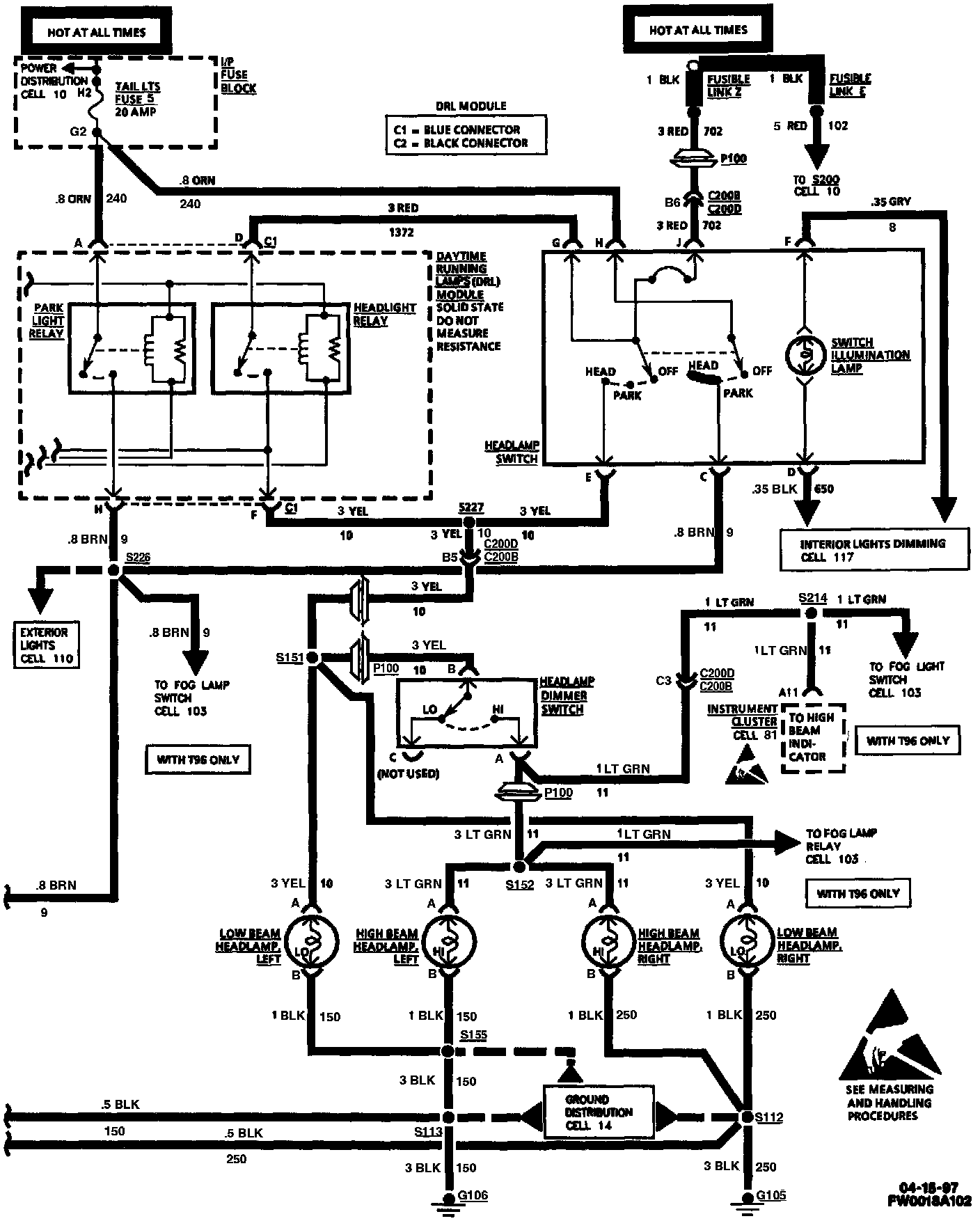

Headlights: Daytime Running Lights (DRL) (Part 1 Of 2):

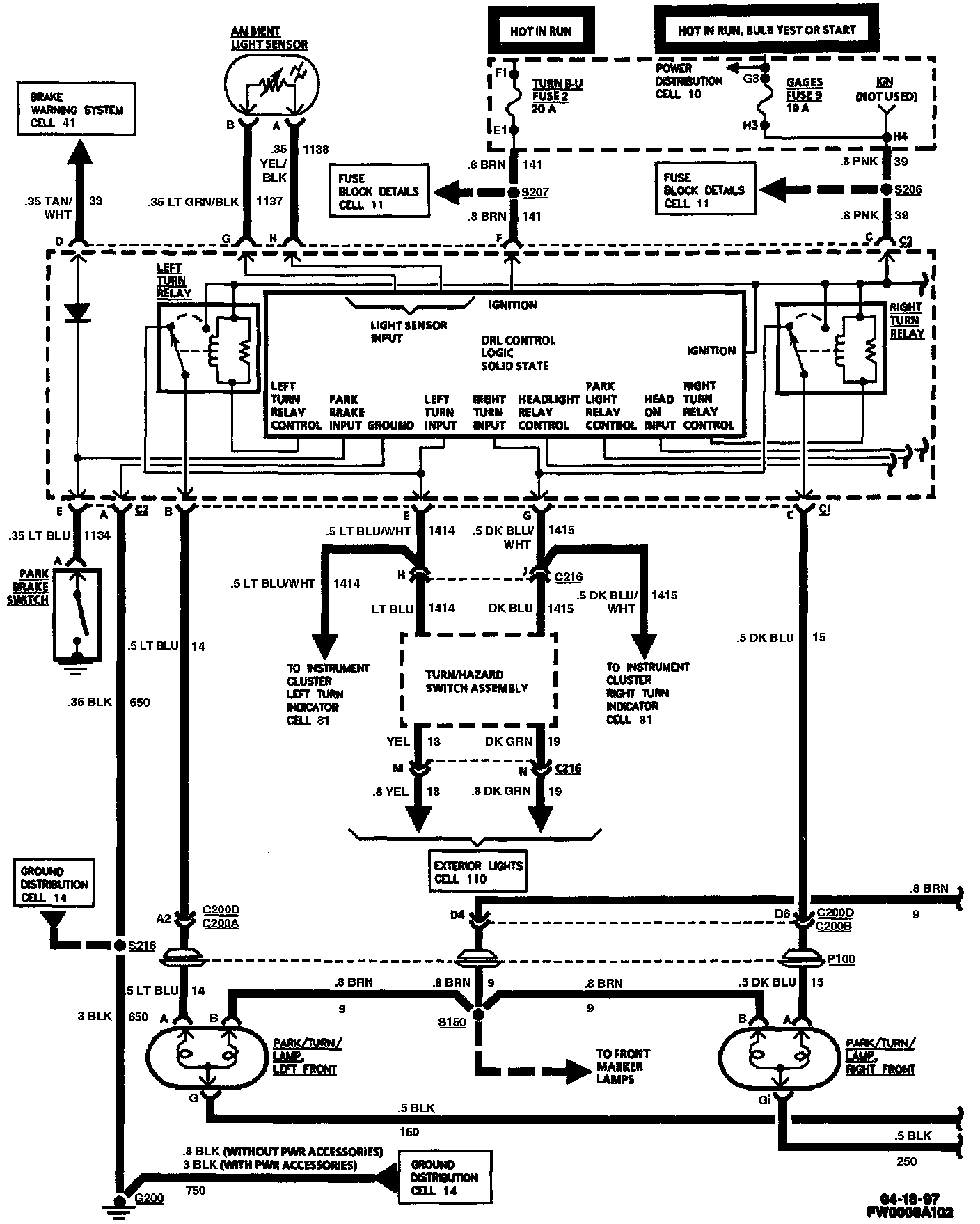

Headlights: Daytime Running Lights (DRL) (Part 2 Of 2):
