Fog Lamp Replacement - Rear

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle.

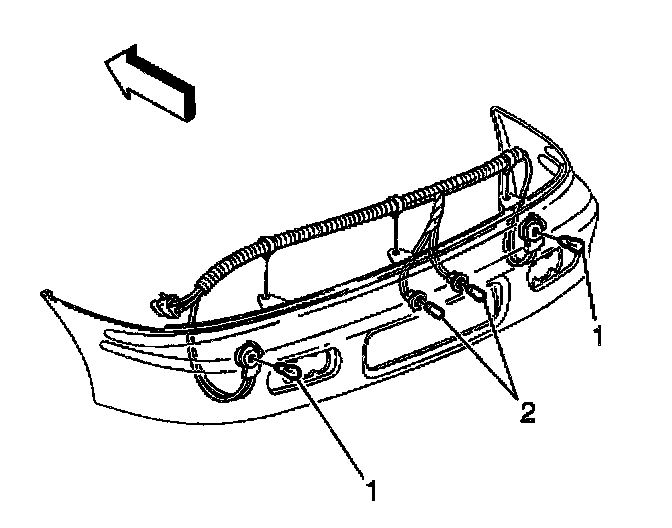

2. Disconnect the rear fog lamp electrical connector (1).




3. Remove the rear tog lamp self threading nuts.

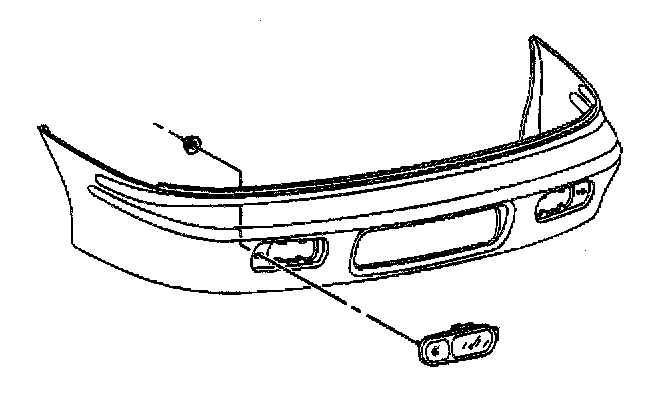

4. Remove the rear fog lamp from the rear fascia.

INSTALLATION PROCEDURE




1. Install the rear fog lamp to the rear fascia.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the rear fog lamp self threading nuts.

Tighten
Tighten the rear fog lamp self threading nuts to 1.4 N.m (12 lb in).




3. Connect the rear fog lamp electrical connector.
4. Lower the vehicle.
