Interior Lights Schematics (With Door Jamb Switches)

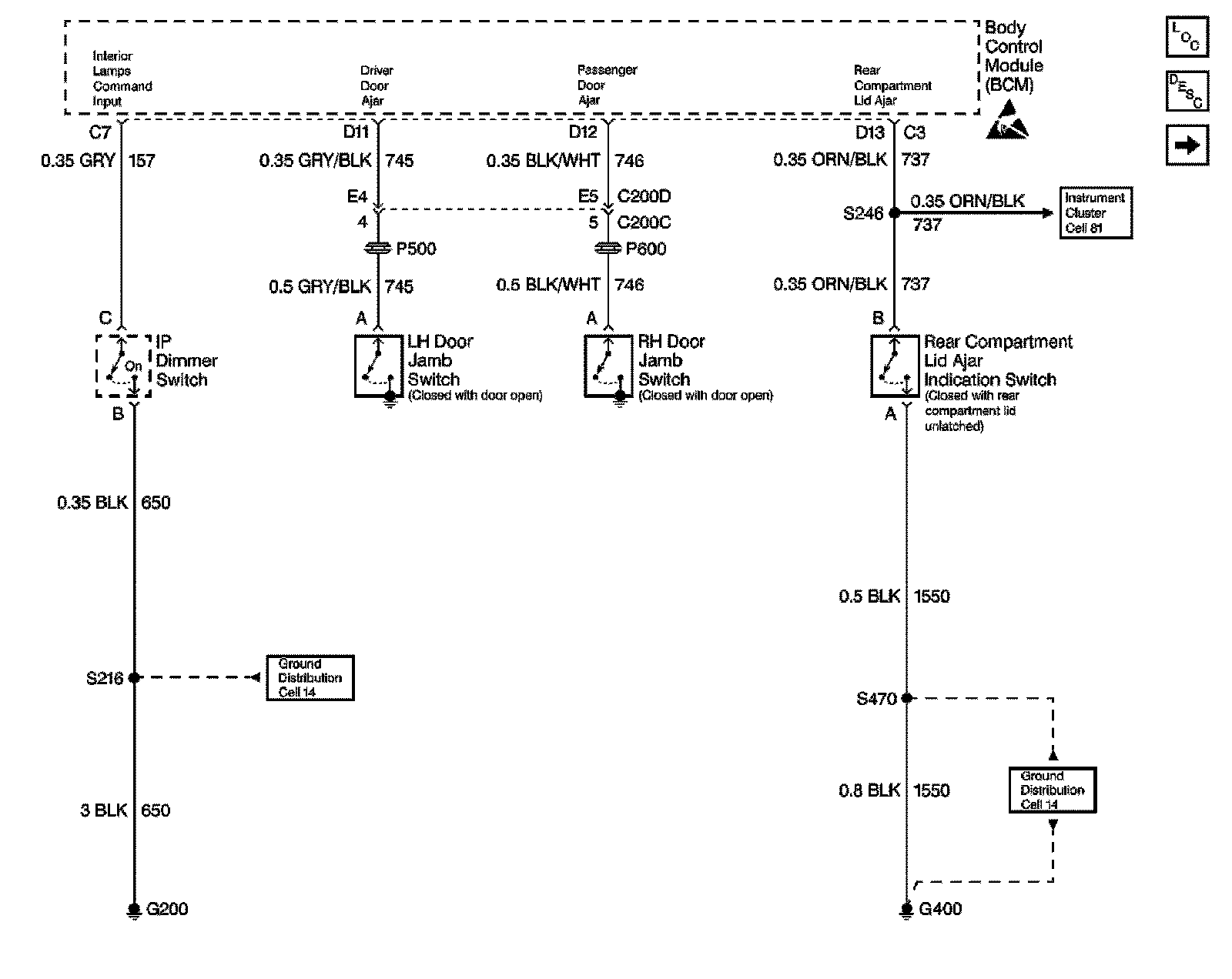

Cell 114: IP Dimmer Switch, Door Jamb Switches, Rear Compartment Lid Ajar Indication Switch

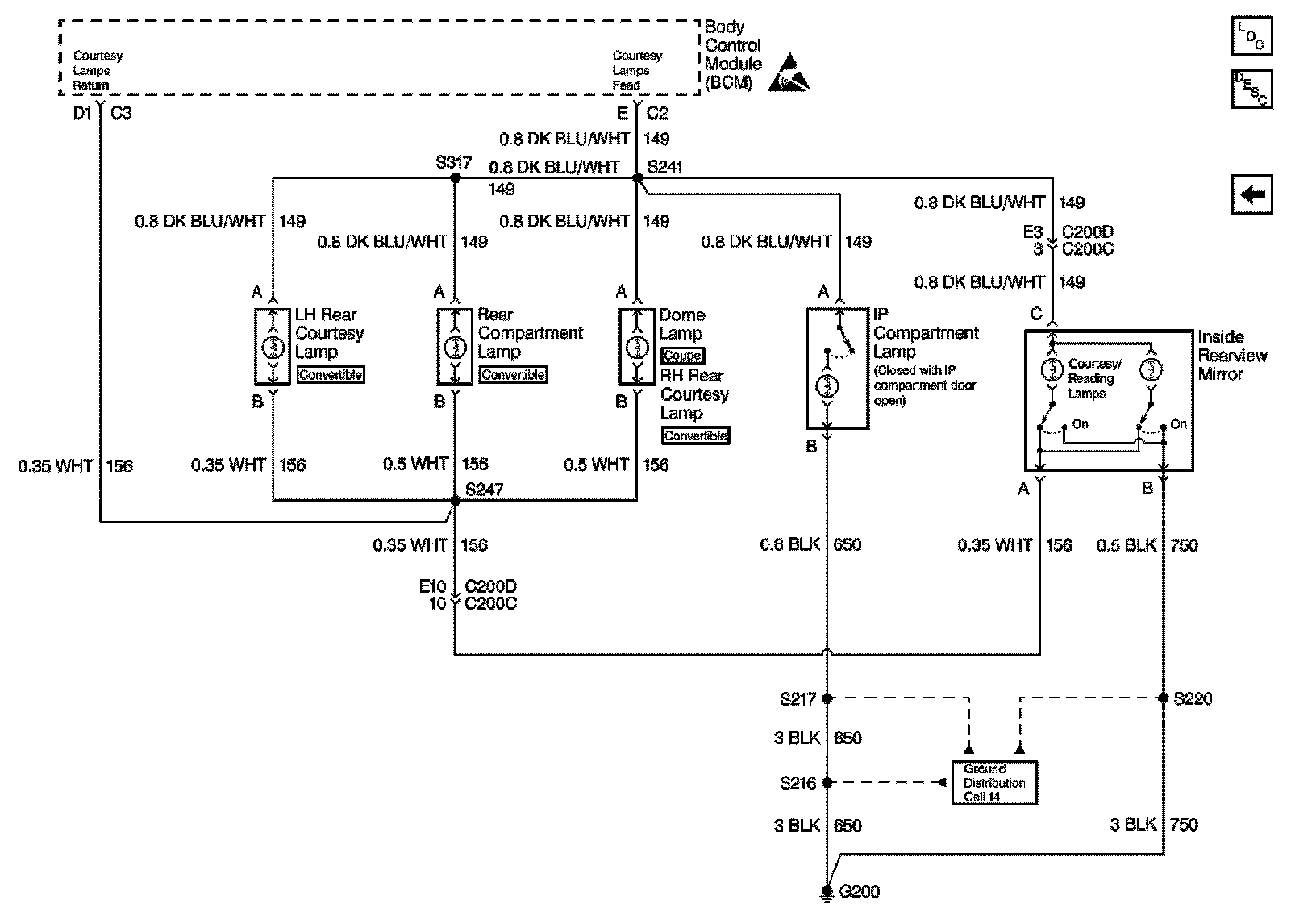

Cell 114: Rear Courtesy Lamps, Rear Compartment Lamp, Dome Lamp, IP CompartMent Lamp
