Glove Box Lamp: Service and Repair

REMOVAL PROCEDURE
1. Open the I/P compartment door.

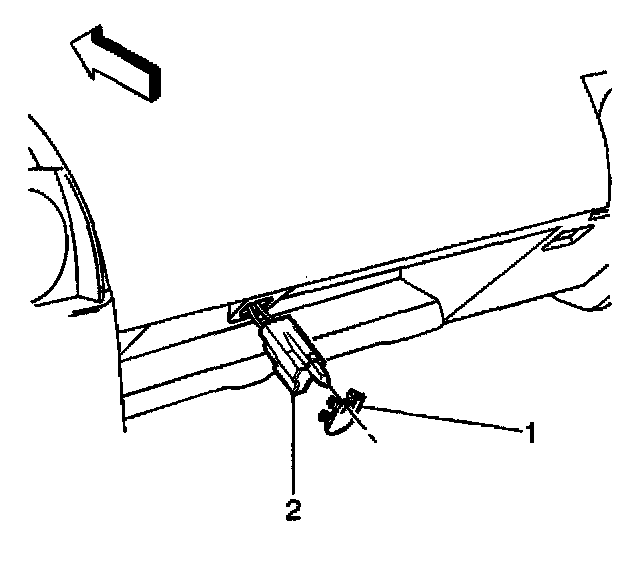

2. Remove the bulb from the harness connector (2).
3. Remove the retainer (1) and connector (2) from the I/P compartment, if necessary.

INSTALLATION PROCEDURE
1. Install the retainer (1) and connector (2) to the I/P compartment, if necessary.
2. Install the bulb to the harness connector (2).
3. Close the I/P compartment door.
