Door Lamp: Service and Repair

REMOVAL PROCEDURE
1. Remove the door switch panel from the door.
2. Disconnect the switches electrical connectors.

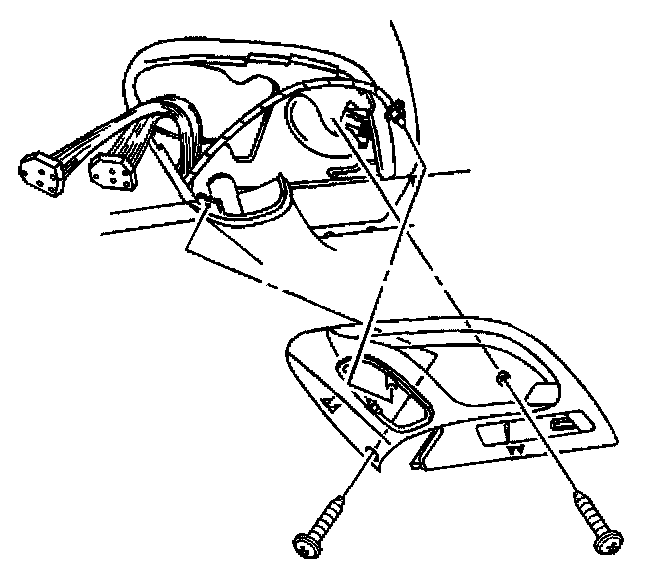

3. Remove the inside handle bezel screws.
4. Remove the inside handle bezel.
5. Disconnect the harness socket from the bezel.
6. Remove the bulb from the socket.

INSTALLATION PROCEDURE
1. Install the bulb to the socket.
2. Connect the harness socket to the bezel.
3. Install the inside handle bezel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the inside handle bezel screws.

Tighten
Tighten the inside handle bezel screws to 1.4 N.m (12 lb in).

5. Connect the switches electrical connectors.
6. install the door switch panel to the door.
