Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Backup Lamps Inoperative
Backup Lamps Inoperative

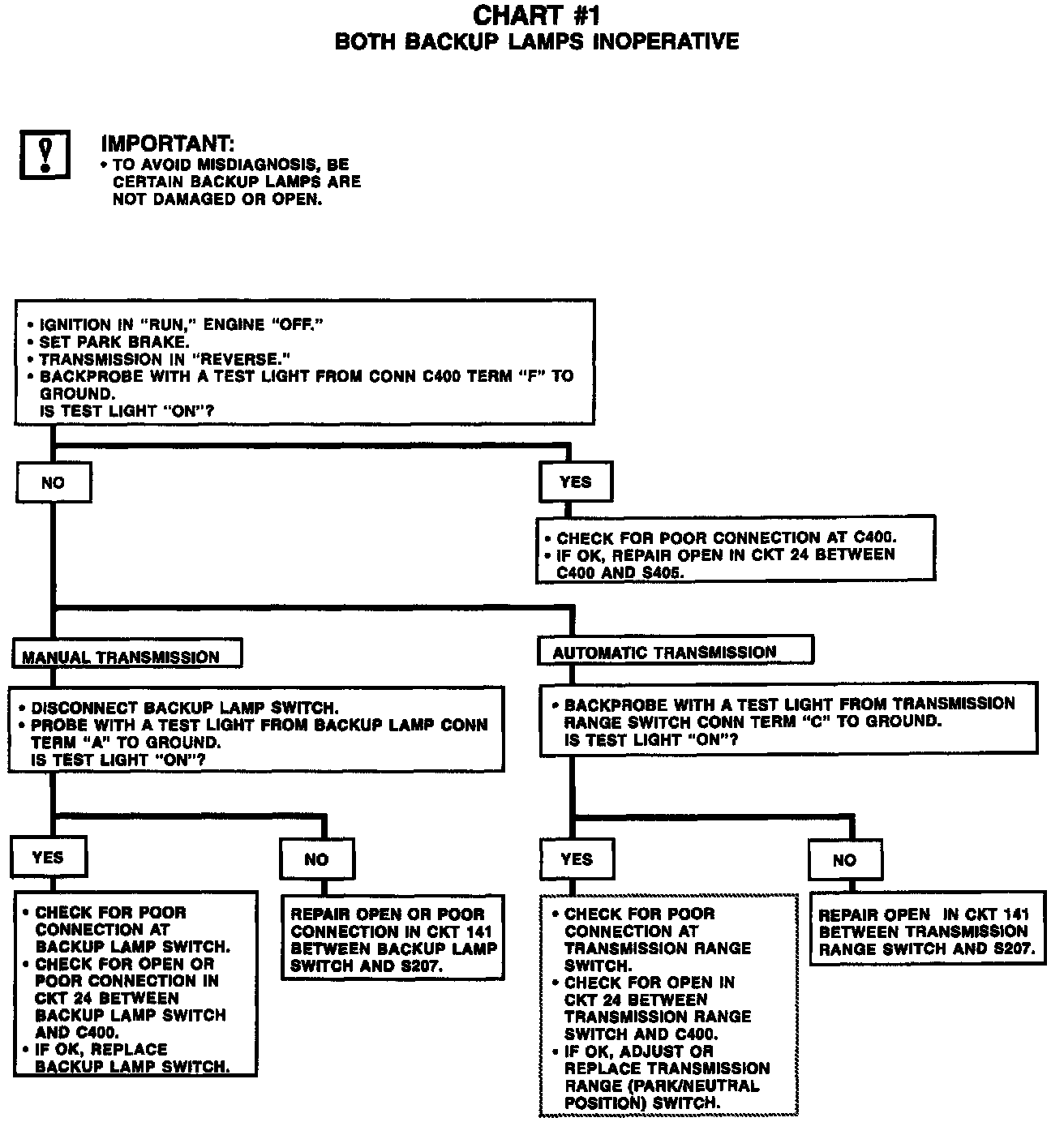

Chart #1 Both Backup Lamps Inoperative:
