Instrument Panel Cluster Bezel Replacement

REMOVAL PROCEDURE
1. Disable the SIR system.
2. Remove the instrument panel insulator.
3. Remove the knee bolster bracket.
4. Lower the steering column.

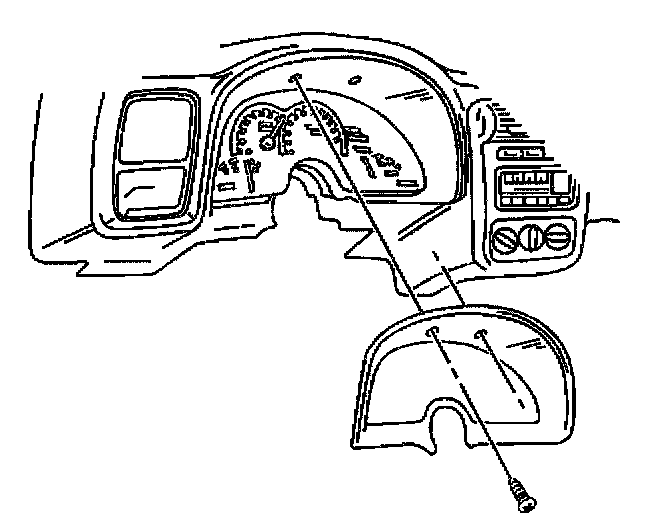

5. Remove the instrument panel cluster trim bezel screws.
6. Remove the instrument panel cluster trim bezel.

INSTALLATION PROCEDURE
1. Install the instrument panel cluster trim bezel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the instrument panel cluster trim bezel screws.

Tighten
Tighten the instrument panel cluster trim bezel screws to 1.9 N.m (17 lb in).

3. Raise the steering column.
4. Install the knee bolster bracket.
5. Install the instrument panel insulator.
6. Enable the SIR system.
