Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Pinout Description
Pinout Description

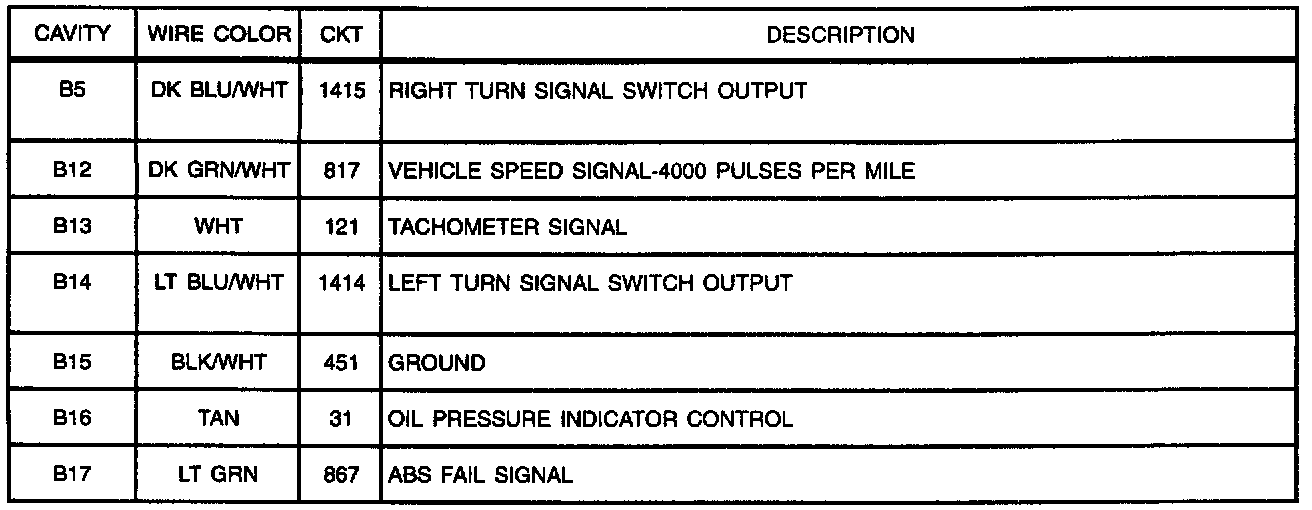

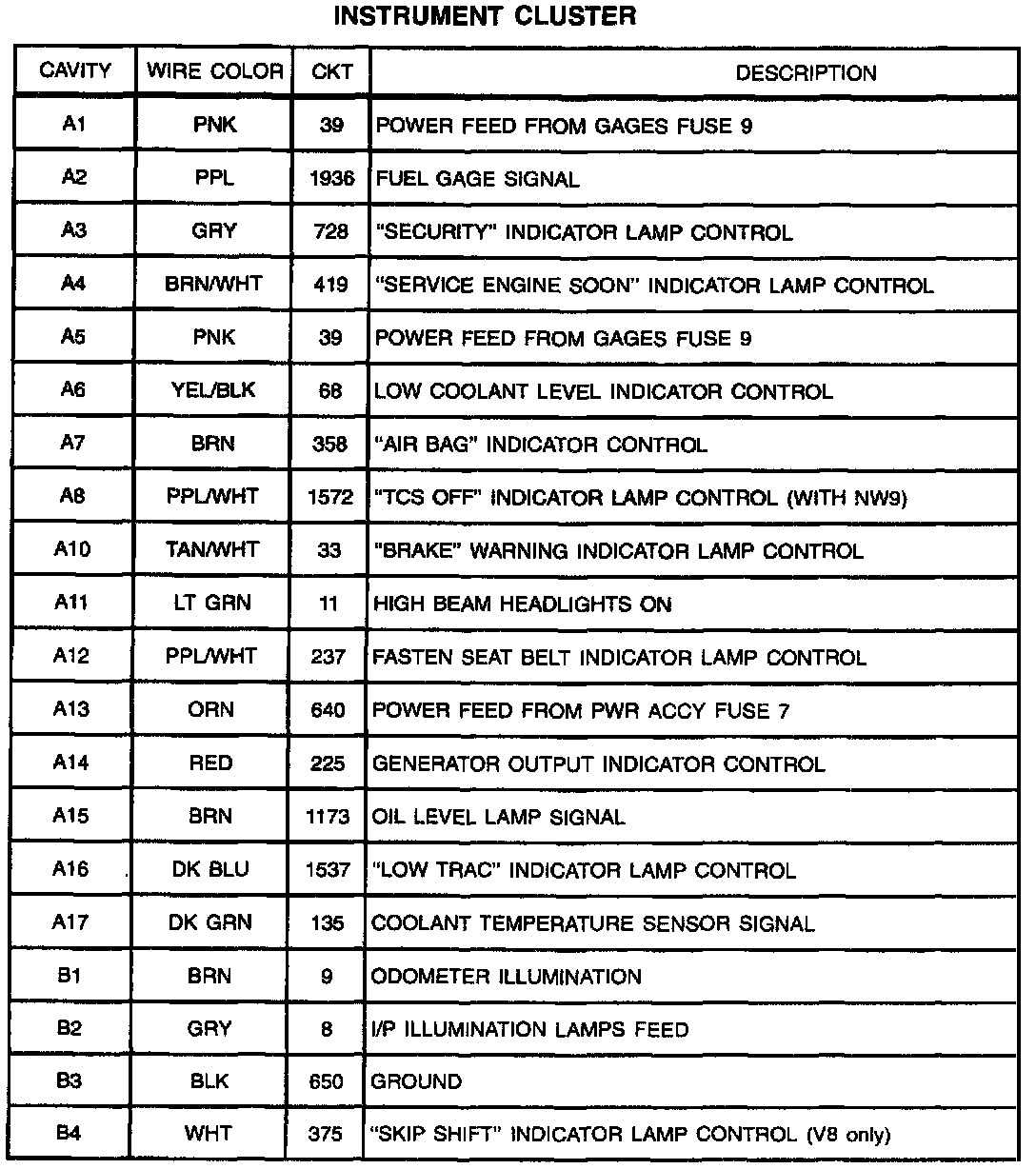

Instrument Cluster:
Instrument Cluster:
