Chart 1 Brake Indicator Stays on W/Ign In Run Park Brake off
Chart 1 Brake Indicator Stays on W/Ign In Run Park Brake off

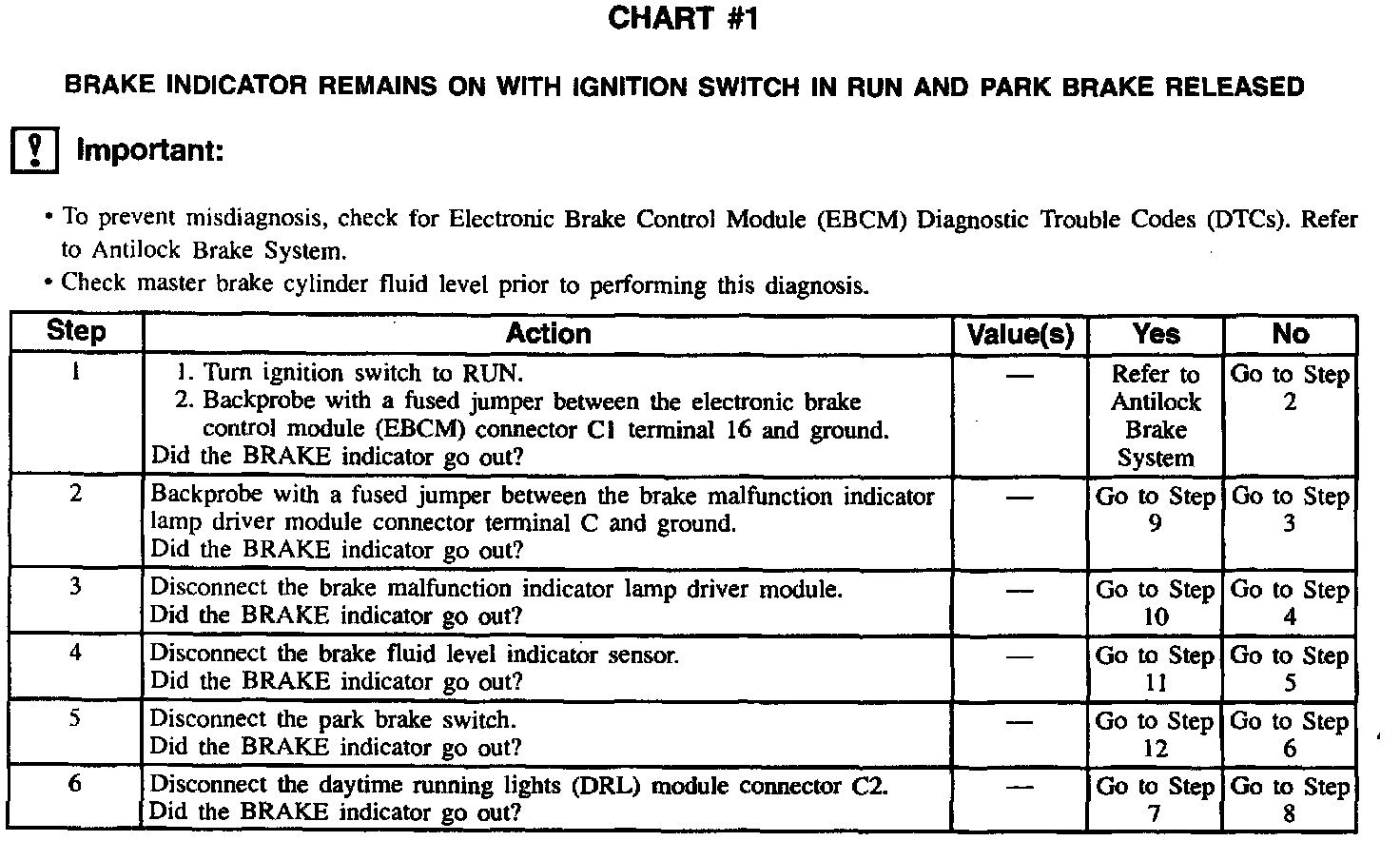

Chart #1 Brake Indicator Remains ON (Part 1 Of 2):

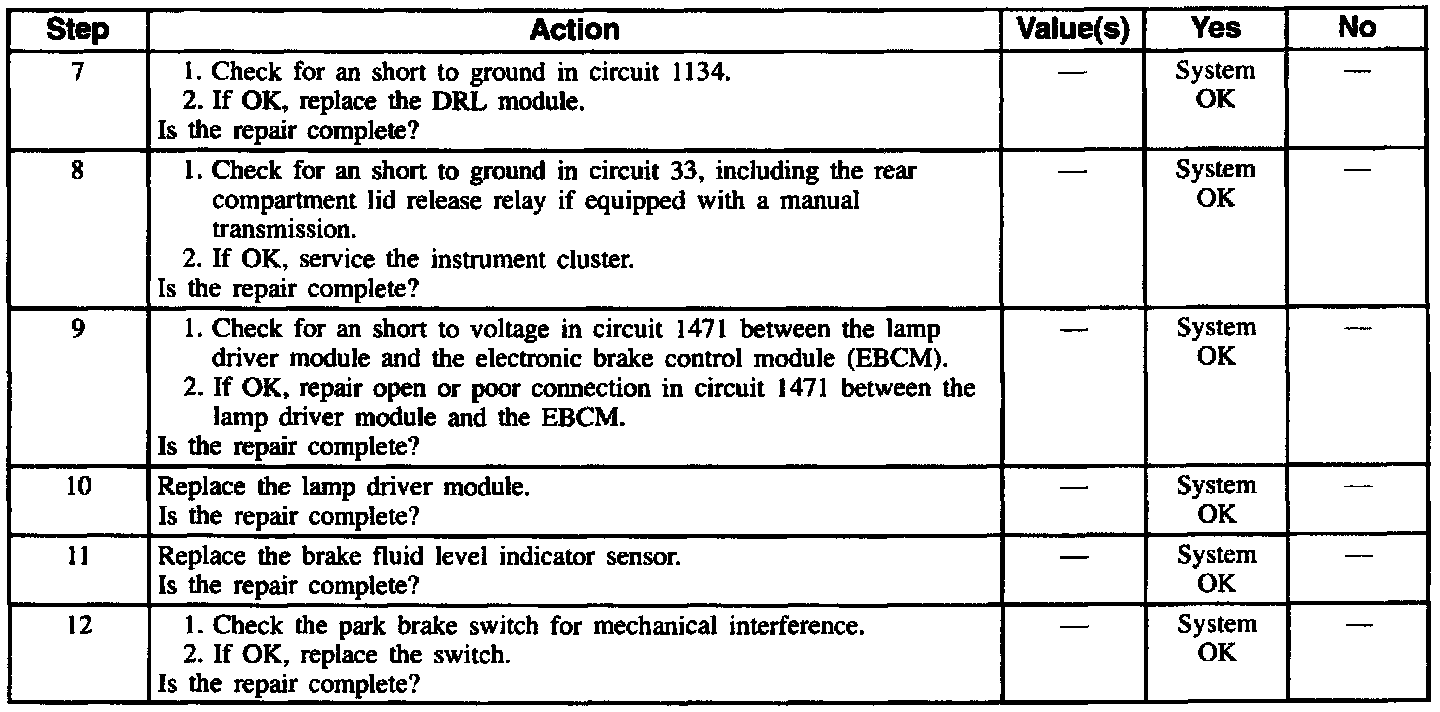

Chart #1 Brake Indicator Remains ON (Part 2 Of 2):
