Vacuum Reservoir HVAC: Service and Repair

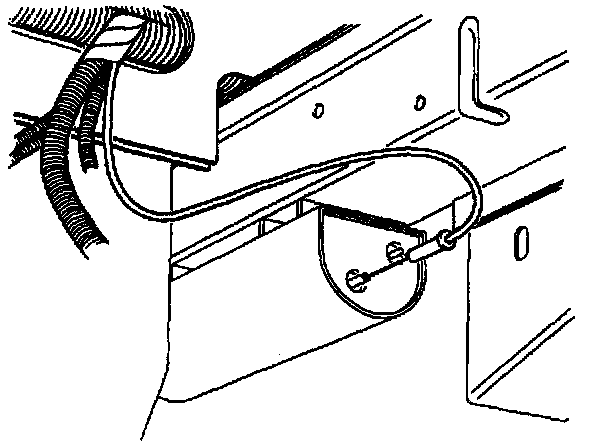

Vacuum Tank Hose To Tank:

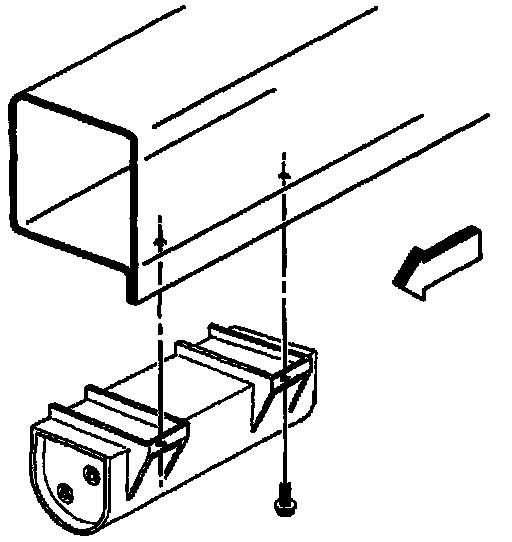

Vacuum Tank To Rail:

The vacuum tank that supplies the heater vacuum system is an oblong-shaped tank mounted below the front right-hand engine rail.

Remove or Disconnect

1. Raise and suitably support vehicle.
2. Right lower side air baffle.
3. Vacuum line from lower connection.
4. Two vacuum tank mounting bolts from top of vacuum tank.
5. Vacuum tank.

Install or Connect

1. Vacuum tank and vacuum tank mounting bolts.

Tighten
^ Vacuum tank mounting bolts to 2.5 N.m (22 lb. in.).

2. Vacuum line to lower connection.
3. Right lower side air baffle.
4. Lower vehicle.
