Air Door Cable: Adjustments

Remove or Disconnect

1. Right instrument panel insulator.
2. Temperature control cable from heater module.

Important
^ With the cable still attached to the HVAC control, cycle the temperature knob between full cold and full hot. If a binding occurs, or the cable does not rotate freely, the cable must be replaced.

3. Set the temperature control knob to the detent position half way between full cold and full hot.

Inspect

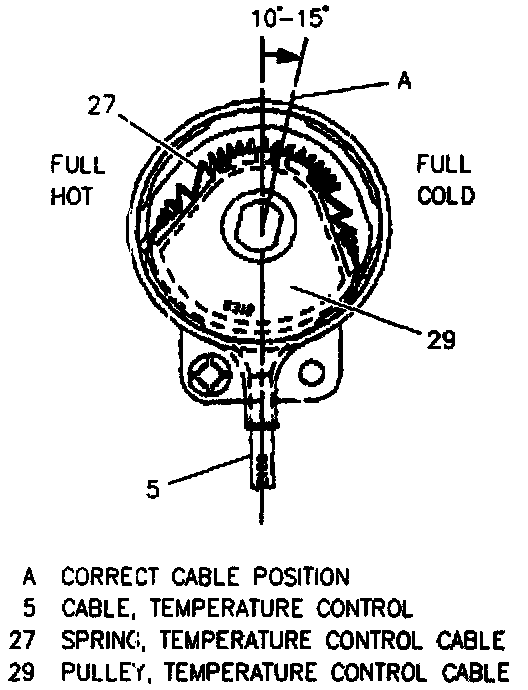

^ Note the position of the control cable pulley (29).
- If the control cable pulley (29) is skewed 5-10 degrees toward the full cold side, no adjustment is necessary.
- If the control cable pulley (29) is skewed toward the full hot side, adjustment of the control cable is necessary.

4. Spring (27) from control cable pulley (29).
5. Control cable pulley 5-10 degrees toward full cold.

Install or Connect

1. Spring (27) to control cable pulley (29).
2. Temperature control cable to heater module.
3. Right instrument panel insulator.
