Timing Chain Replacement

REMOVAL PROCEDURE

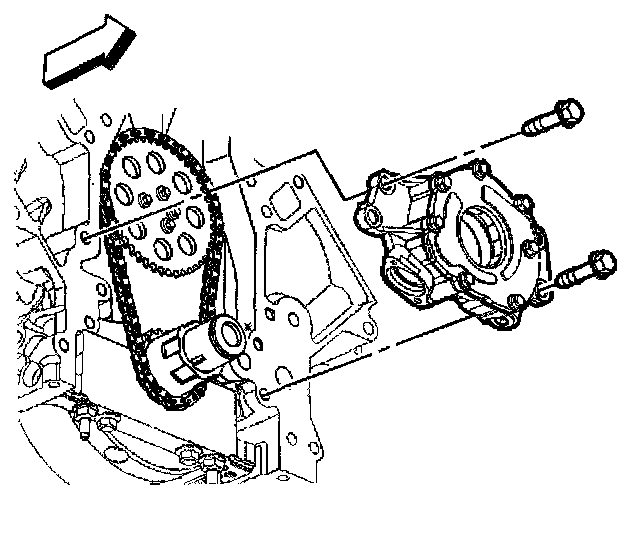

1. Remove the oil pump.

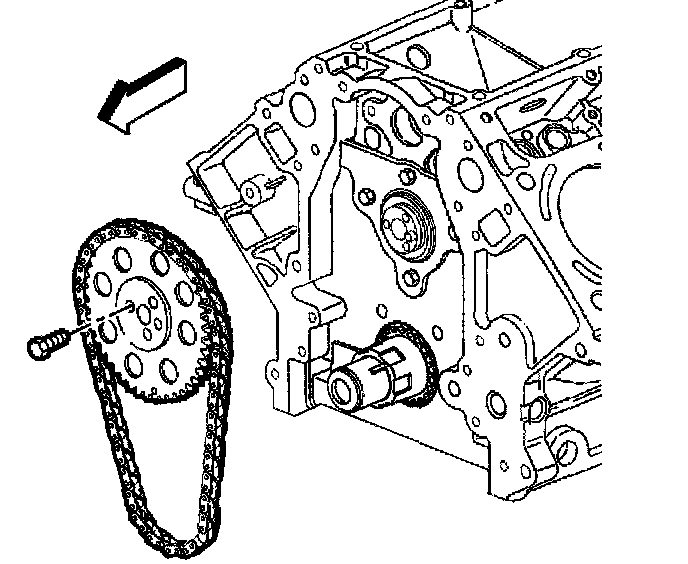

2. Remove the timing chain and sprocket.

INSTALLATION PROCEDURE

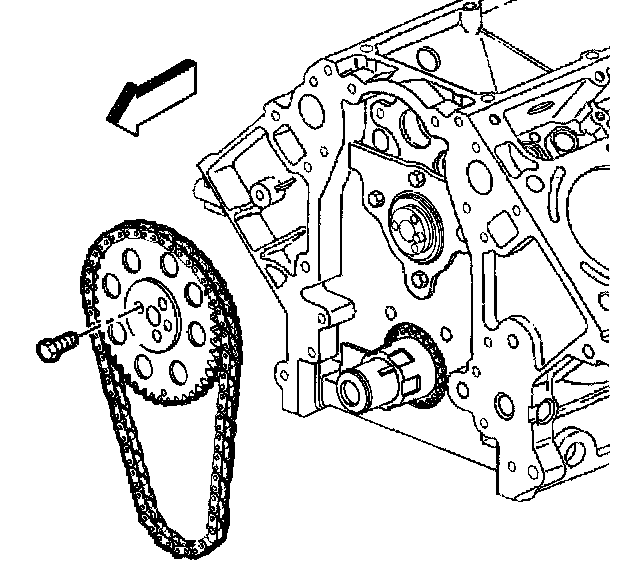

1. Install the timing chain and sprocket.

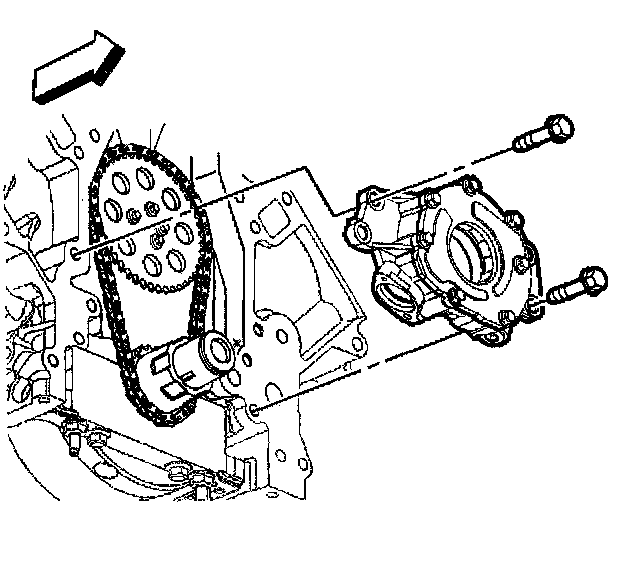

2. Install the oil pump.
