Water Pump Removal

WATER PUMP REMOVAL

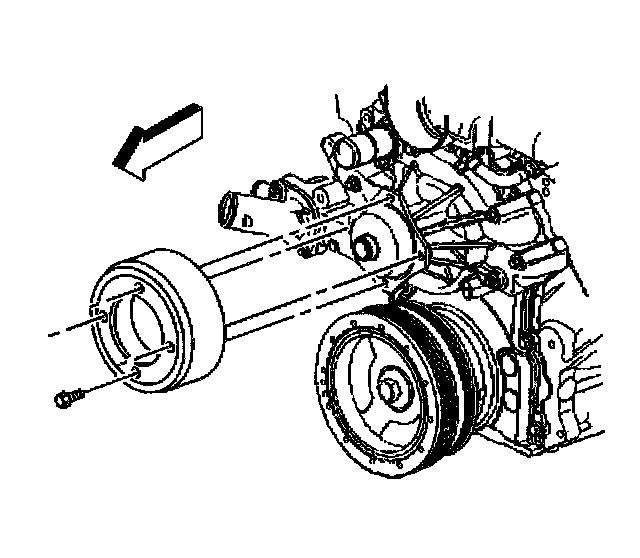

1. Remove the water pump pulley bolts.





2. Remove the water pump pulley.

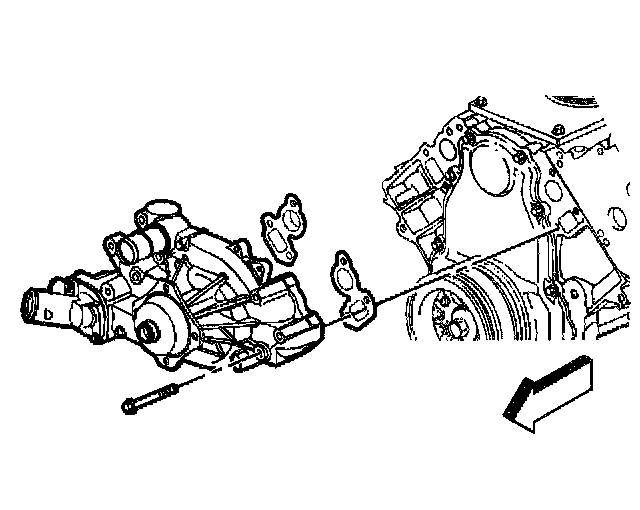

3. Remove the water pump bolts.
4. Remove the water pump and gaskets.
5. Discard the water pump gaskets.
