Vapor Vent Pipe Replacement

VAPOR VENT PIPE REMOVAL

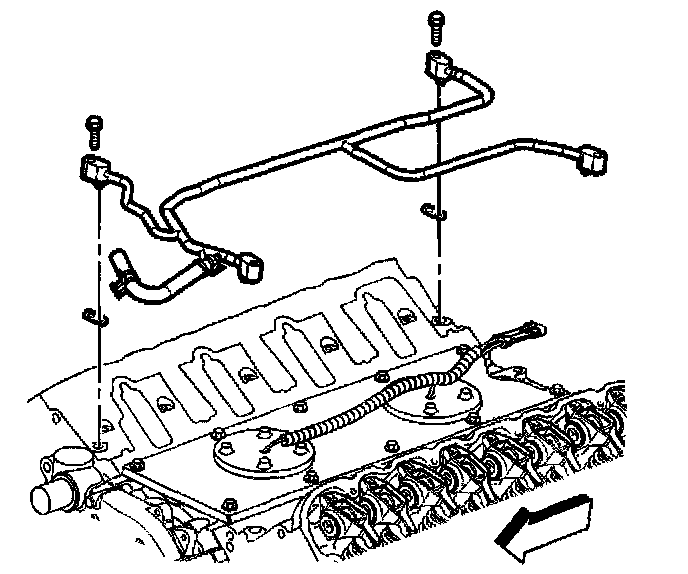

1. Disconnect the knock sensor wire harness retaining clips from the tube.
2. Remove the vapor vent pipe hose and clamp.
3. Remove the vapor vent pipe bolts.





4. Remove the vapor vent pipe and gaskets.

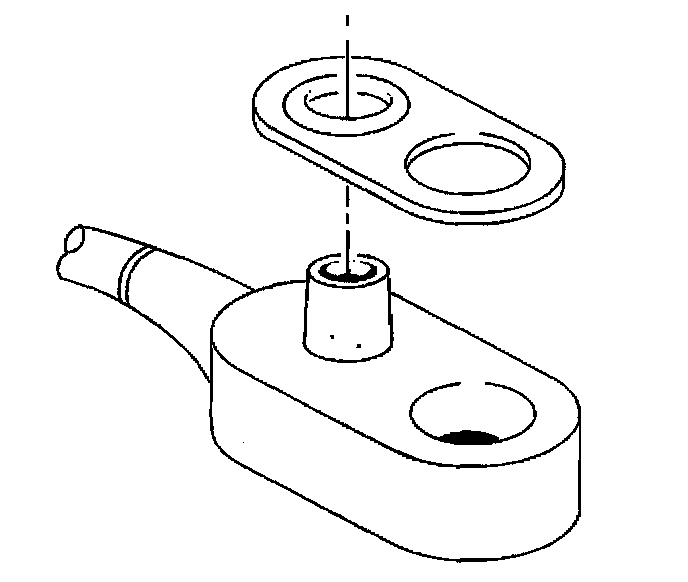

5. Remove the gaskets from the pipe.
6. Discard the vapor vent pipe gaskets.
