Valve Rocker Arm Cover Removal (Right Side)

VALVE ROCKER ARM COVER REMOVAL (RIGHT SIDE)

IMPORTANT: Do not remove the ignition coils from the valve rocker arm cover unless required. Do not remove the oil fill tube from the cover unless service is required. If the oil fill tube has been removed from the cover, install a NEW tube during assembly.





1. Remove the valve rocker arm cover bolts.

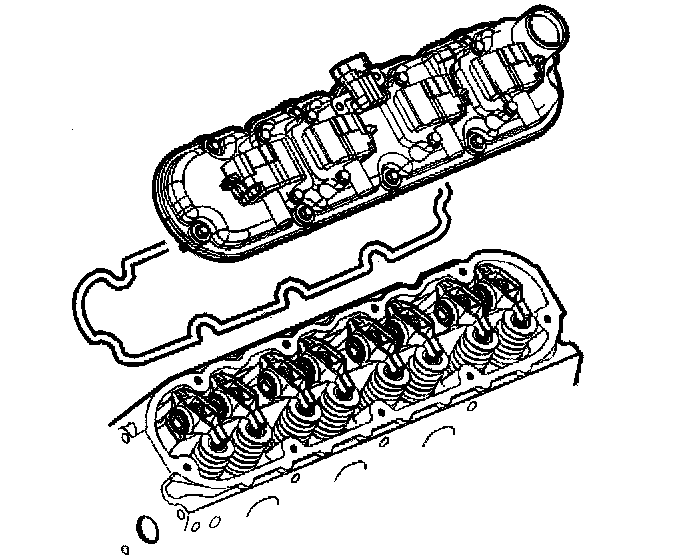

2. Remove the valve rocker arm cover.

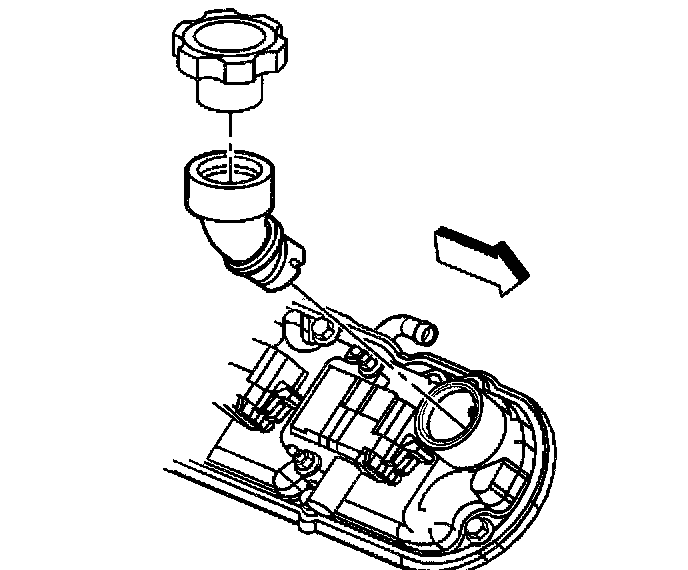

3. Remove the oil fill cap from the oil fill tube.
4. Remove the oil fill tube (if required).
5. Discard the oil fill tube.





6. Remove the gasket and bolt grommets from the cover.
7. Remove the ignition coil wire harness (if required).

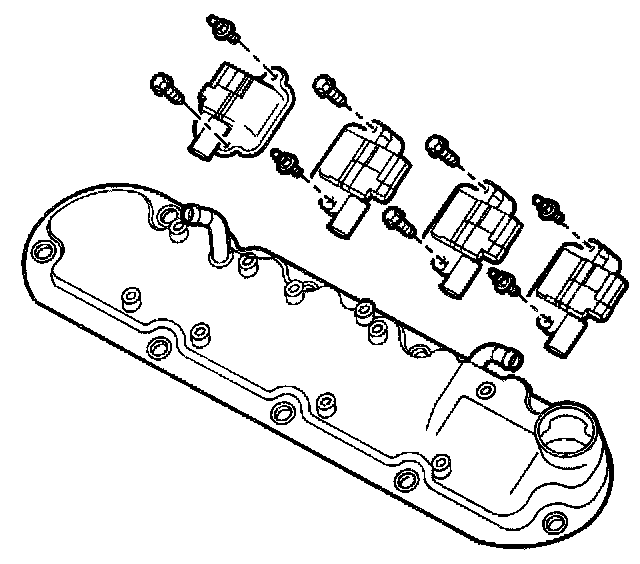

8. Remove the ignition coils and bolts (if required).
9. Discard the gasket. The bolt grommets may be reused if not damaged.
