Valve Rocker Arm Cover Removal (Left Side)

VALVE ROCKER ARM COVER REMOVAL (LEFT SIDE)

IMPORTANT: Do not remove the ignition coils from the valve rocker arm cover unless required. Do not remove the vent valve grommet from the cover unless service is required. If the vent valve grommet has been removed from the cover, a NEW grommet must be installed.

1. Remove the crankcase vent vacuum tube from the grommet.
2. Remove the valve rocker arm cover bolts.

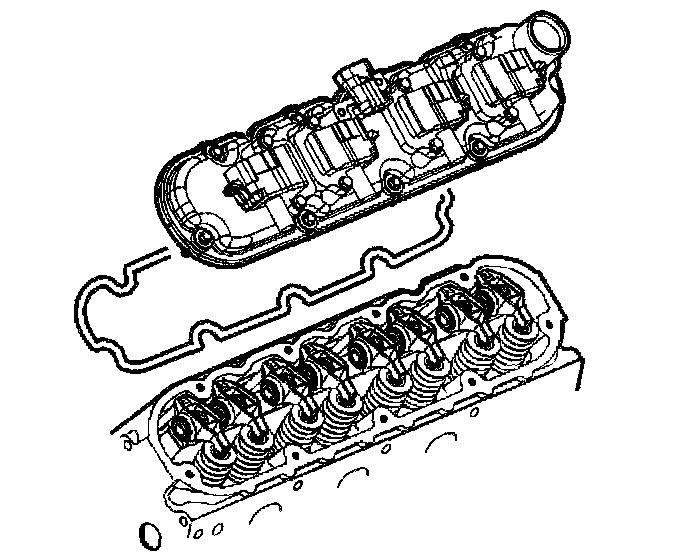

3. Remove the valve rocker arm cover.

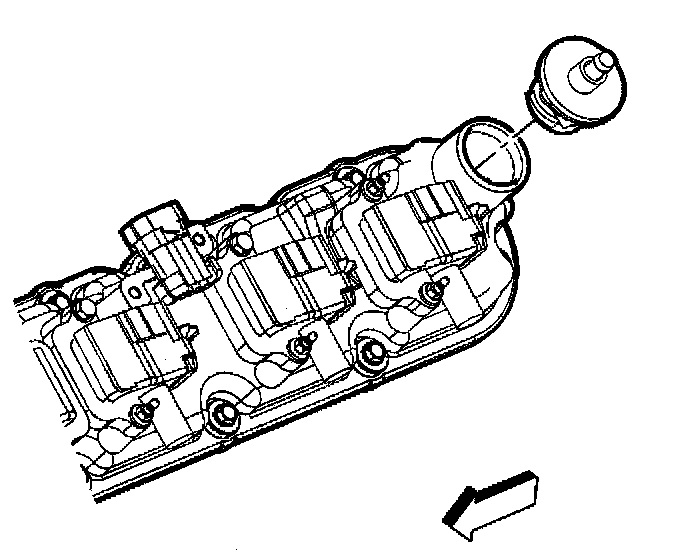

4. Remove the crankcase vent valve grommet from the left cover (if required).
5. Discard the vent valve grommet.





6. Remove the ignition coil wire harness (if required).

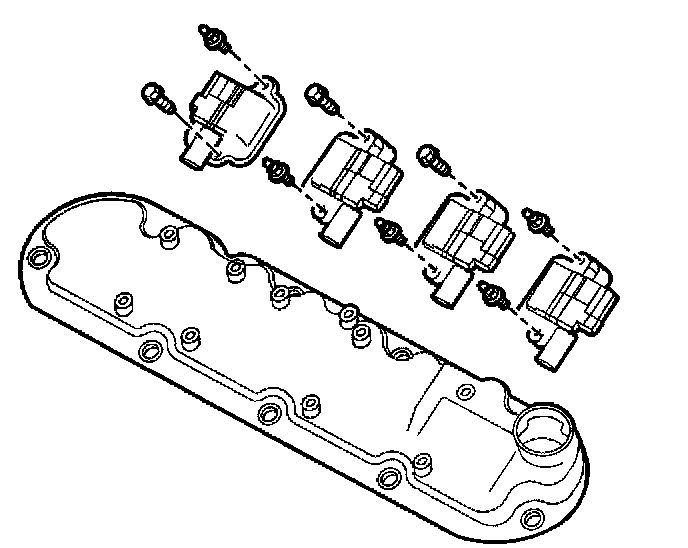

7. Remove the ignition coils and bolts from the cover (if required).
8. Remove the gasket and bolt grommets from the cover.
9. Discard the gasket. The bolt grommets may be reused if not damaged.
