Valve Rocker Arm Cover Installation (Left Side)

VALVE ROCKER ARM COVER INSTALLATION (LEFT SIDE)

IMPORTANT: All gasket surfaces should be free of oil or other foreign material during assembly.

DO NOT reuse the valve rocker arm cover gasket.
DO NOT remove the ignition coils from the valve rocker arm cover unless necessary.
The valve rocker arm cover bolt grommets may be reused.
If the vapor vent grommet has been removed from the valve rocker arm cover, install a NEW vapor vent gourmet during assembly.

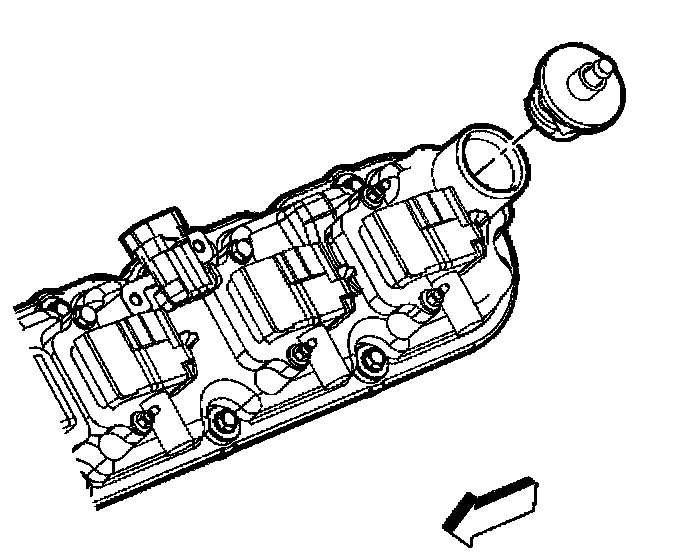

1. Lubricate the O-ring seal of the NEW vapor vent gourmet with clean engine oil.
2. Insert the NEW vapor vent grommet into the rocker arm cover and rotate the grommet clockwise until locked in the proper position.
3. Install a NEW cover gasket into the valve rocker arm cover.





4. Install the cover bolts with grommets.

NOTICE: Refer to Fastener Notice in Service Precautions.

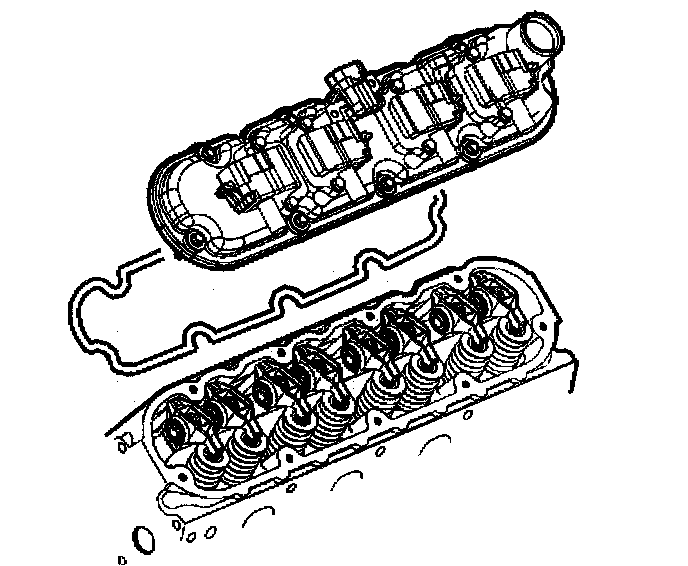

5. Install the valve rocker arm cover onto the cylinder head.
^ Tighten the valve rocker arm cover bolts to 12 Nm (106 inch lbs.).

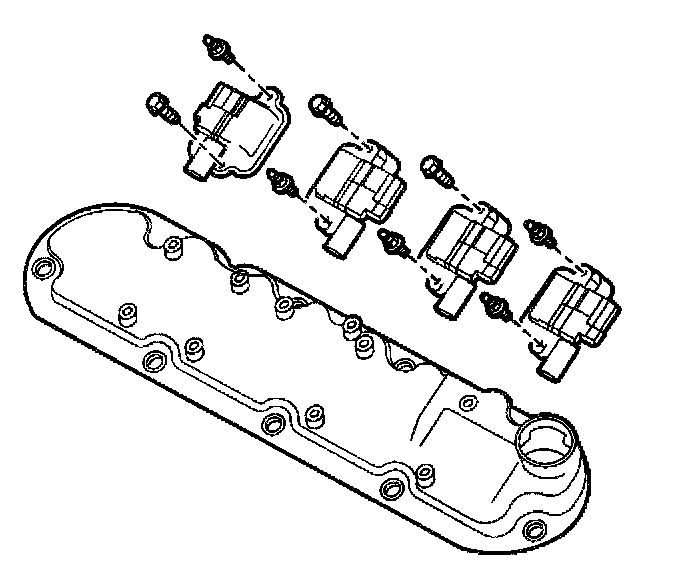

6. Install the ignition coils, studs, and bolts (if applicable).
^ Tighten the ignition coil studs and bolts to 12 Nm (106 inch lbs.).

7. Install the ignition coil wire harness (if applicable).
8. Install the ignition coil wire harness connector bolts (if applicable).
^ Tighten the ignition coil wire harness connector bolts to 12 Nm (106 inch lbs.).

9. Install the crankcase ventilation hose.
