Throttle Body Installation

THROTTLE BODY INSTALLATION

IMPORTANT: DO NOT reuse the throttle body gasket. Install a NEW gasket during assembly.

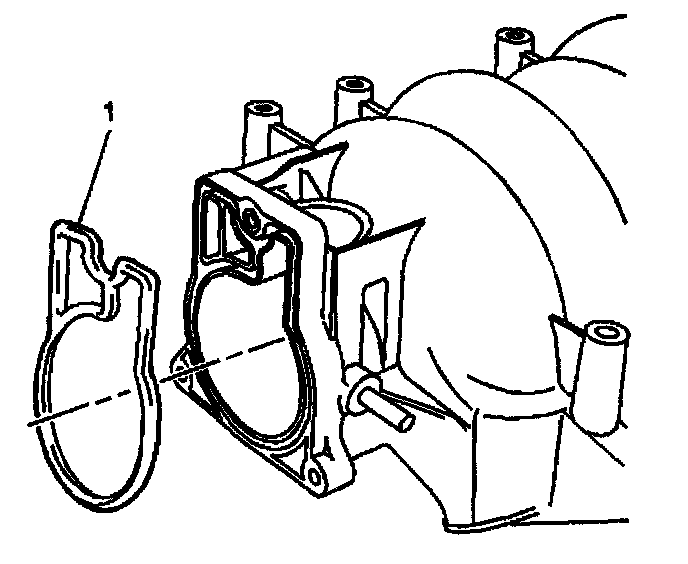

1. Install the throttle body gasket (1) to the intake manifold.

NOTICE: Refer to Fastener Notice in Service Precautions.

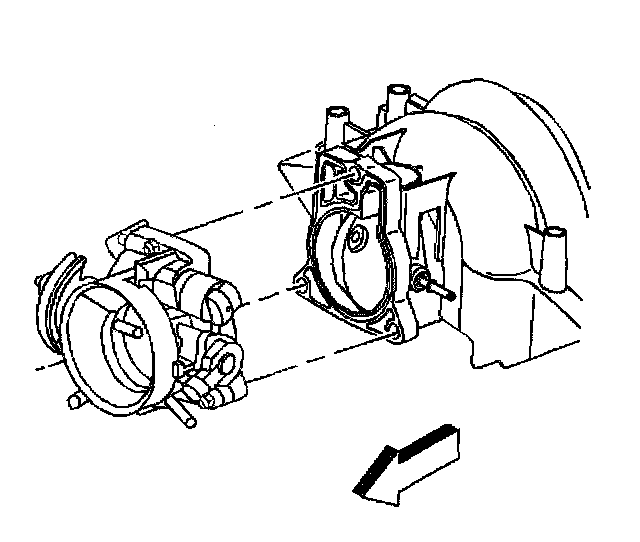

2. Install the throttle body and bolts.
^ Tighten the throttle body bolts to 12 Nm (106 inch lbs.).

3. Install the vapor vent hose and clamp.
