Oil Pump, Pump Screen and Deflector Removal

OIL PUMP, PUMP SCREEN AND DEFLECTOR REMOVAL

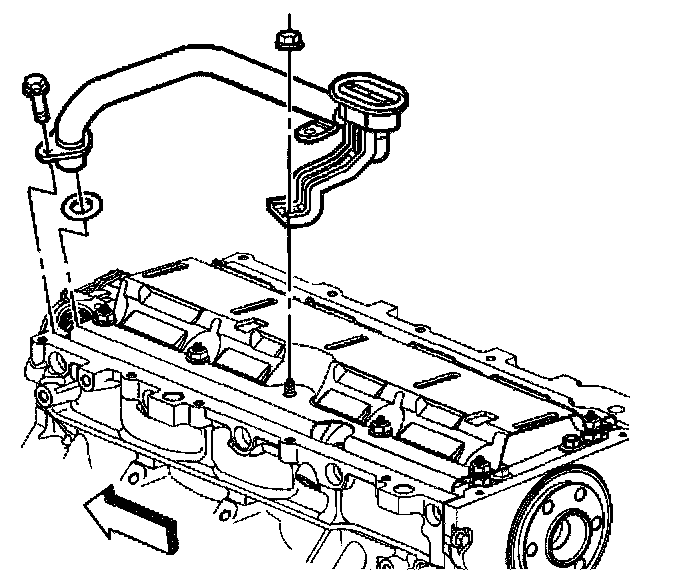

1. Remove the oil pump screen bolt and nuts.
2. Remove the oil pump screen with O-ring seal.
3. Remove the O-ring seal from the pump screen.
4. Discard the O-ring seal.





5. Remove the remaining crankshaft oil deflector nuts.

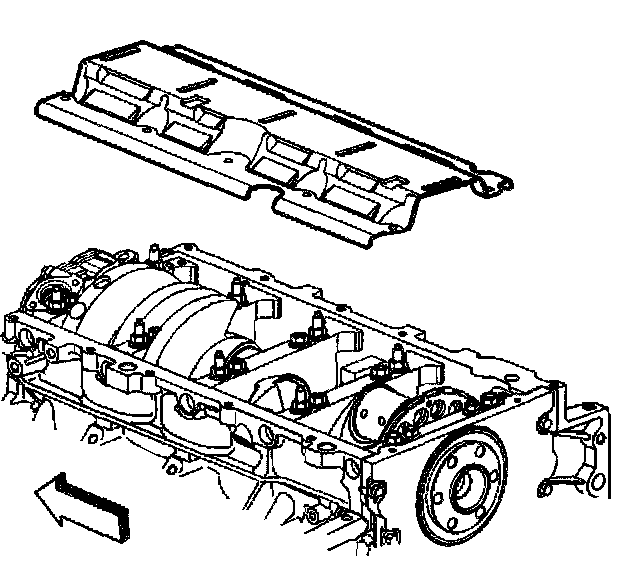

6. Remove the crankshaft oil deflector.

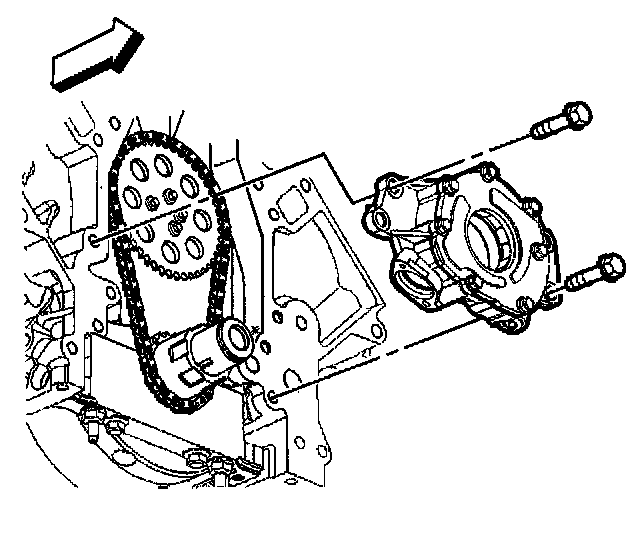

7. Remove the oil pump bolts.

IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.





8. Remove the oil pump.
